Shop CENTURY

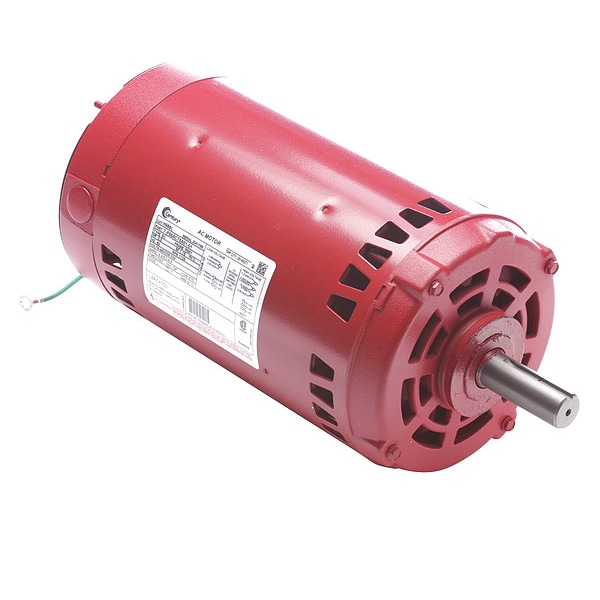

56 FRAME ELECTRIC MOTOR

  • Mfr # H988L

  • Zoro # G0789525

product price:  $597.99
/ea
Free Shipping & Returns

Key Features

Duty
Continuous
No. of Speeds
1
Motor Frame Material
Rolled Steel
Usable @ 208V
Usable at 208V
Motor Thermal Protection
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H988L
Zoro #
G0789525
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/16 in
Body Dia.
6.5 in
Shaft Dia.
7/8 in
Overall Length
14 9/16 in
Manufacturers Warranty Length
2 yr
Bolt Circle Dia.
10 in
Length Less Shaft
12 1/4 in
Resilient Ring Dia.
2 1/2 in
Height
6 1/2 in
Body Diameter
6.5 in
Shaft Diameter
7/8 in
Bolt Circle Diameter
10 in
Resilient Ring Diameter
2 1/2 in

Details

Duty
Continuous
Item
Pool Pump Motor
No. of Speeds
1
Motor Frame Material
Rolled Steel
Usable @ 208V
Usable at 208V
Motor Thermal Protection
None
Motor Mounting Type
Cushion Ring
Weight
42 lb
Usable @ 200V
Usable at 200V
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.15
Nameplate RPM
1,725
HP
3
Motor Bearings
Ball
Motor Design
3-Phase
RPM Range
1,701-1,800
Motor Shaft Rotation
CCW
Motor Application
Pool and Spa Pump
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
208V AC, 230V AC, 460V AC
Hz
60 Hz
Frame
R56Y
Voltage
208-230/460V AC
Motor Shaft Design
Keyed
Phase
Three
Standards
CSA, UL
Duty Cycle
Continuous
Ins. Class
F
Full Load Amps
4.4 A/8.8 A
Ring to Ring Center
11 7/8 in
Motor Sub Application
Hot Water Pump
Max. SF Amps
5.05/10.10A
Conduit Box Location
Interior
Motor Mounting Position
Horizontal
Finish
Paint
Inverter Rated
No
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Full Load Current @ 60 Hz
4.4 A/8.8 A
Insulation Class
F
Bearing Type
Ball
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
2 yr
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Number of Speeds
1

Description

Pool Pump Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.4 A/8.8 A, R56Y Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cushion Ring, Motor Mounting Position Horizontal
