Century

Motor, PSC, 1/3 HP, 1625 RPM, 115V, 48Y, OAO

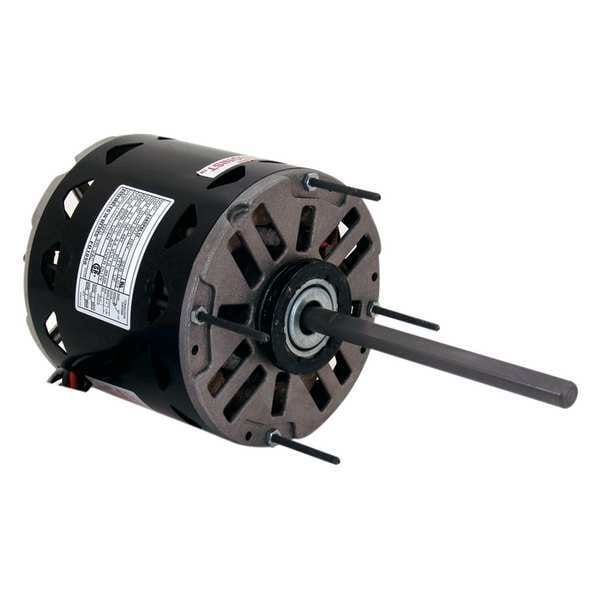

Century Motor, PSC, 1/3 HP, 1625 RPM, 115V, 48Y, OAO FDL1034
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$163.69
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Motor Service Factor: 1
  • Shaft Length: 6 7/16 in
See full product details
This item ships free.
Total: $163.69

Century #FDL1034 Specifications

  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Motor Service Factor: 1
  • Shaft Length: 6 7/16 in
  • Max. Ambient Temp.: 40 Degrees C
  • Length Less Shaft: 5 5/8 in
  • Includes: Resilient Mounting Ring, Belly Band
  • Motor Shaft Rotation: CW/CCW
  • Nameplate RPM: 1,625
  • Motor Application: HVAC/R
  • Ring to Ring Center: 5 3/16 in
  • Standards: CSA Certified, UL Recognized
  • Motor Sub Application: Direct Drive Fan/Blower
  • Motor Enclosure Design: Open Air-Over
  • Motor Bearings: Sleeve
  • Motor Mounting Position: All Angle
  • Body Dia.: 5 5/8 in
  • Shaft Dia.: 1/2 in
  • HP: 1/3
  • Full Load Amps: 4.0
  • Application: Blowers, Fans and Air Circulators
  • Stud Size: #8-32
  • Phase: Single
  • Motor Thermal Protection: Auto
  • Motor Shaft Design: Flat
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Mounting Stud Location: Shaft End
  • Voltage: 115V AC
  • No. of Speeds: 3
  • Hz: 60 Hz
  • Motor Mounting Type: Ring
  • Frame: 48Y
  • RPM Range: 1,601-1,700
  • Motor Design: Permanent Split Capacitor
  • Item: Direct Drive Blower Motor
  • Capacitor Required: 2MDV9
  • Resilient Ring Dia.: 2 1/4 in
  • Duty: Continuous
  • Ins. Class: A
  • Motor Frame Material: Steel
  • Overall Length: 11 9/16 in
  • Weight: 13 lb
  • Usable @ 208V: No
  • Lead Length: 26 in
  • Mounting Holes: (4) #8-32
  • Stud Quantity: 4
  • Number of Shafts: 1
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,625, No. of Speeds 3, Voltage 115V AC, Full Load Amps 4.0, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 26 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Ring, Motor Mounting Position All Angle, Number of Shafts 1
