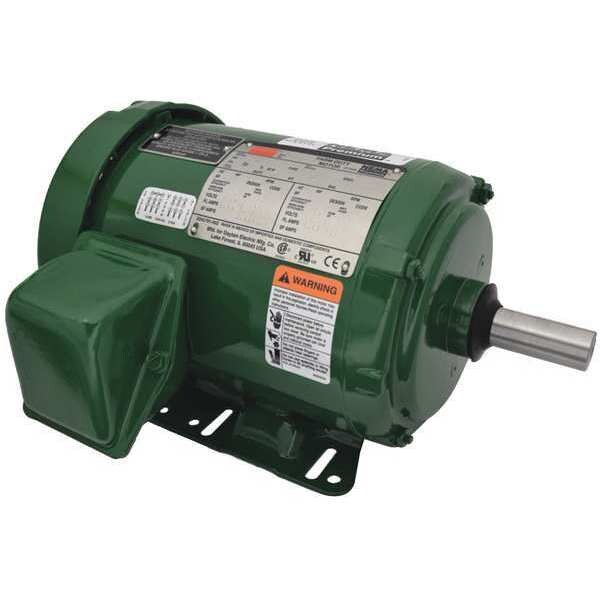

Dayton General Purpose Farm Duty Motor, 3-Phase, 1 HP, 230/460V AC, 1,755 Nameplate RPM, 143-5T/56HZT Frame 35Z916 - main

General Purpose Farm Duty Motor, 3-Phase, 1 HP, 230/460V AC, 1,755 Nameplate RPM, 143-5T/56HZT Frame

  • Mfr # 35Z916

  • Zoro # G4989302

product price:  $866.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143-5T/56HZT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
35Z916
Zoro #
G4989302
UPC #
190735274156
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
13 in
Length Less Shaft
10 5/8 in
Shaft Length
2 3/8 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
3-Phase
Phase
Three
HP
1
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143-5T/56HZT
Motor Service Factor
1.25
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,755
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose Farm
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Max. Ambient Temperature
40 Degrees C
Frame Material
Rolled steel
Motor Bearings
Ball
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Full Load Amps
3.0/1.5 A
Includes
Shaft Key, Shaft Slinger, Gasketed Conduit Box
Ins. Class
F
Hz
60/50 Hz
Finish
Dayton Gray
Nominal Efficiency
85.5 %
Duty Cycle
Continuous
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Application
Farm Duty

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143-5T Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
