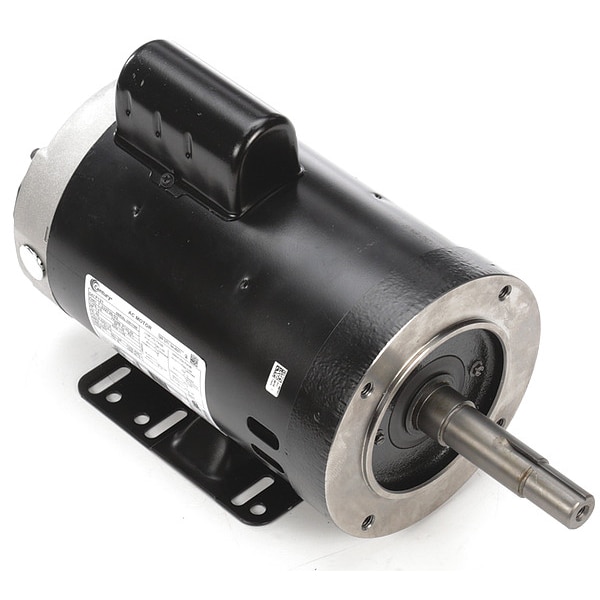

Close-Coupled Pump Motor
Mfr # P121
Zoro # G3271460
product price:Â $559.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
HP
1 hp
RPM Range
1,701-1,800
Nameplate RPM
1,745
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
P121
Zoro #
G3271460
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
11 5/16 in
Overall Length
15 9/16 in
Shaft Length
4 1/4 in
Shaft Dia.
1 1/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
6.5 in
Height
6 3/4 in
Description
Close-Coupled Pump Motor, Bearing Protection External Slinger, Body Dia. 6.5 in, Duty Cycle Continuous, Finish Powder Coated, Frame 143JM, Hz 60 Hz, Full Load Amps 7.5/15.0 A, Height 6 3/4 in, HP 1 hp, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 11 5/16 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 1.15, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start
