Shop CENTURY

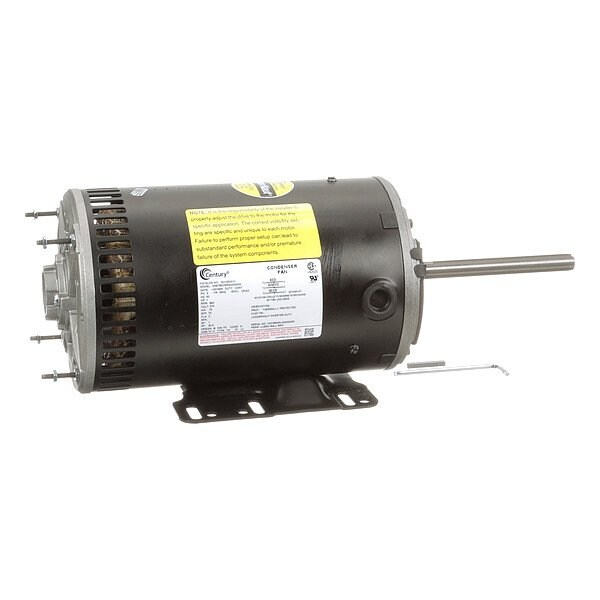

Condenser Fan Motor, 1 hp

  • Mfr # 056T85ORR40003A2

  • Zoro # G511931142

product price:
$
949.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1
RPM Range
0-1,000
Nameplate RPM
850
Voltage
575V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T85ORR40003A2
Zoro #
G511931142
UPC #
786674076113
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 1/2 in
Length Less Shaft
9 27/32 in
Shaft Length
6 in
Overall Length
15 27/32 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56HZ
Wire Rope Length
15 27/32 in
Length
15 27/32 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1
RPM Range
0-1,000
Nameplate RPM
850
Voltage
575V AC
Frame
56HZ
Motor Mounting Type
Lug
Phase
Three
Motor Enclosure Design
Open Air-Over
Motor Thermal Protection
Auto
Full Load Amps
2.0 A
Motor Bearings
Ball
Motor Shaft Design
Keyed
No. of Speeds
1
Duty
Continuous
Nominal Efficiency
72 %
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Vertical Shaft Up
Motor Application
HVAC/R
Motor Service Factor
1
Features
Vertical/Horizontal Mounting for Proper Placement of the Fan within Airflow
Voltage Compatibility
575V AC
Application
Condenser Fan
Ins. Class
F
Max. Ambient Temp.
70 Degrees C
Standards
CSA Certified, UL Listed
Hz
60 Hz
Full Load Current @ 60 Hz
2.0 A
Insulation Class
F
Wattage
750 W
Capacitor Required
Capacitor Not Required
Number of Speeds
1
Bearing Type
Ball
Shaft Design
Keyed
Product Type
Condenser Fan Motor
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C
Motor Enclosure Type
Open Air Over
Sub Application
Condenser Fan
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 575V AC, 2.0 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel
