Shop CENTURY

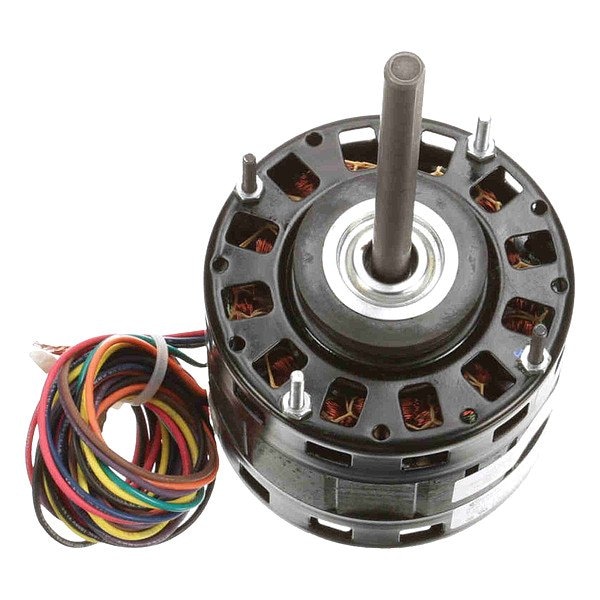

Fan and Blower Motor

  • Mfr # BL6505V1A

  • Zoro # G615562433

product price:  $141.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/10, 1/5, 1/8
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BL6505V1A
Zoro #
G615562433
UPC #
786674077660
Country of Origin
Mexico

Dimensions

Lead Length
34 1/2 in
Shaft Length
5 1/2 in
Length Less Shaft
4 21/32 in
Body Dia.
5 in
Overall Length
10 5/32 in
Shaft Dia.
1/2 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#10-32
Body Diameter
5 in
Frame Size
42
Wire Rope Length
10 5/32 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/10, 1/5, 1/8
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
115V AC
Frame
42
Motor Mounting Type
Ring
Phase
Single
Motor Enclosure Design
Open Air-Over
Motor Frame Material
Rolled Steel
Weight
10.13 lb
Capacitor Required
Capacitor Not Included
Mounting Holes
#10-32
Motor Service Factor
1
Motor Mounting Position
Horizontal
Hz
60 Hz
Motor Shaft Design
Flat
Max. Ambient Temp.
104 Degrees F
Voltage Compatibility
115V AC
Extended Thru-Bolts
Yes
Standards
CSA, UL Listed
Motor Shaft Rotation
CW/CCW
No. of Speeds
3
Includes
Shoulder Studs
Motor Bearings
Ball
Includes Blade
Fan Included
Full Load Amps
1.7 A, 2.2 A, 3.3 A
Motor Application
Air Conditioning Motor, Air Handler, Fan Coil, Furnace Blower
Motor Thermal Protection
Auto
Motor Sub Application
Fan and Blower Motor
Ins. Class
B
Usable @ 208V
Not Usable at 208V
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Bearing Type
Ball
Product Type
Fan and Blower Motor
Motor Enclosure Type
Open Air Over
Application
Fan/Blower
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Shaft Design
Flat
Frequency
60 Hz
Mounting Position
Horizontal
Wattage
150 W
Insulation Class
B
Includes Fan
Fan Included
Number of Speeds
3
Full Load Current @ 60 Hz
1.7 A, 2.2 A, 3.3 A
Drive Type
Direct Drive

Description

Fan Coil and Air Conditioner Motors
