Shop CENTURY

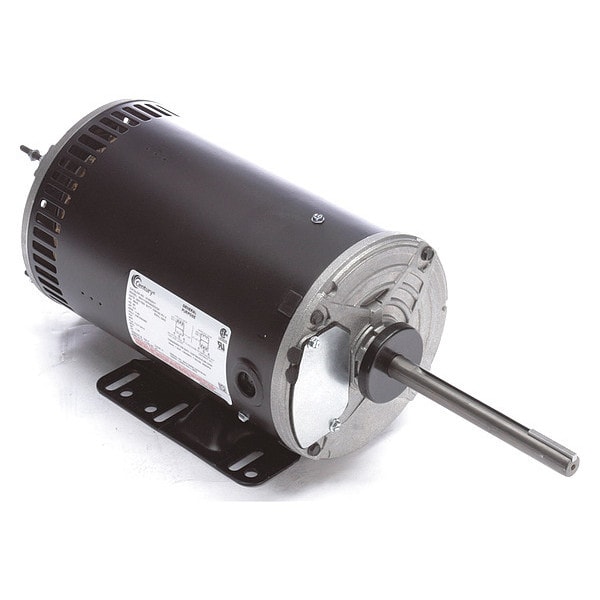

Condenser Fan Motor, 2 hp

  • Mfr # H1052AV1
  • Zoro # G3701387
product price:
$
516.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H1052AV1
Zoro #
G3701387
UPC #
-
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Shaft Design
Keyed
Ins. Class
F
Application
Condenser Fan
Full Load Amps
7.0-7.0/3.5 A
Nominal Efficiency
80.9 %
Features
Inverter Duty
Standards
CSA Certified, UL Recognized
Mounting Stud Pattern
4 3/16 in x 4 3/16 in
Capacitor Required
Capacitor Not Required
Motor Service Factor
1
Duty
Continuous
Motor Bearings
Ball
Stud Quantity
4
Hz
60 Hz
Weight
44 lb
Usable @ 208V
Usable at 208V
Output Watts
1500 W
Usable @ 200V
Not Usable at 200V
Inverter Rated
Yes
Motor Frame Material
Steel
Duty Cycle
Continuous
Frequency
60 Hz
Insulation Class
F
Product Type
Condenser Fan Motor
Bearing Type
Ball
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Inverter Rating
Inverter Rated
Manufacturers Warranty
1 yr
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Wattage
1500 W
Shaft Design
Keyed
Mounting Position
Horizontal/Vertical Shaft Up
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
7.0-7.0/3.5 A
Sub Application
Condenser Fan
Frame Material
Steel

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.0-7.0/3.5 A Full Load Amps, 56HZ Frame, Output Watts 1500 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
