Shop CENTURY

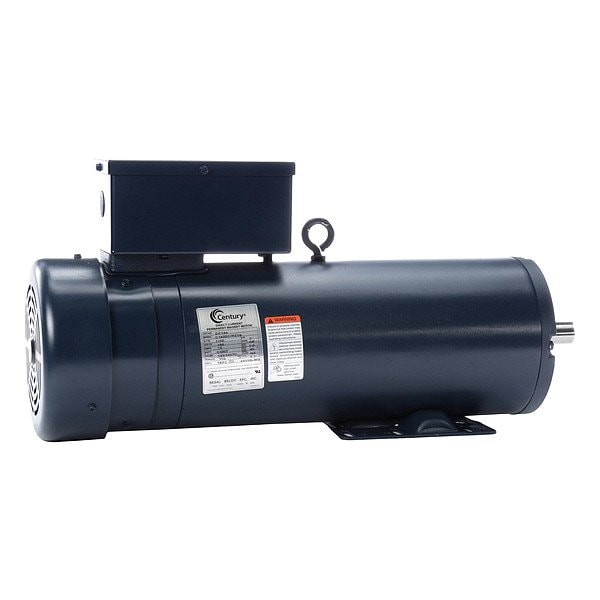

DC Permanent Magnet Motor, 145TC

  • Mfr # DC144

  • Zoro # G211930285

product price:
$
4,595.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1,750 RPM
Shaft Dia.
7/8 in
Voltage
180V DC
Frame
145TC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DC144
Zoro #
G211930285
UPC #
786674065506
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
20 1/4 in
Overall Length
22 5/16 in
Bolt Circle Dia.
5 7/8 in
Stud Size
3/8"-16
Shaft Length
2 1/16 in
Wire Rope Length
22 5/16 in
Bolt Circle Diameter
5 7/8 in
Frame Size
145TC
Mounting Stud Thread Size
3/8"-16
Shaft Diameter
7/8 in

Details

HP
3
Nameplate RPM
1,750 RPM
Item
DC Permanent Magnet Motor
Voltage
180V DC
Frame
145TC
Motor Design
Permanent Magnet
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Weight
107 lb
Motor Mounting Type
Rigid Base
Removable Base
Yes
Motor Frame Material
Steel
RPM Range
1,701-1,800
Motor Thermal Protection
None
Duty Cycle
Continuous
Standards
CSA Certified, UL Listed
Max. Ambient Temp.
104 Degrees F
Ins. Class
H
Motor Shaft Design
Keyed
Nominal Efficiency
81.5 %
Voltage Compatibility
180V DC
Full Load Amps
15 A
Motor Service Factor
1
Motor Sub Application
General Purpose
Shaft Design
Keyed
Insulation Class
H
Ambient Temperature - Maximum
104 Degrees F
Application
General Purpose
Full Load Current
15 A
Product Type
DC Motor
Nameplate Service Factor
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Includes
Removable Base
Nameplate Voltage
180V DC

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 3 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 15 A Full Load Amps, 145TC Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 7/8 in, Motor Frame Material Steel, Shaft Length 2 1/16 in
