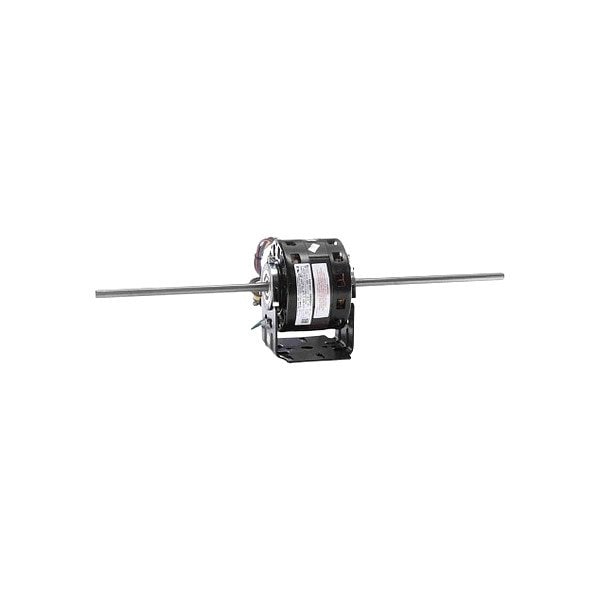

Direct Drive Blower Motor

  • Mfr # DB6502V1A
  • Zoro # G514235582
product price:
$
159.99
/ea
Free Shipping & Returns

Key Features

Motor Thermal Protection
Auto
Motor Design
Permanent Split Capacitor
Includes
Resilient Base
Manufacturers Warranty Length
2 yr
Lead Length
38 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DB6502V1A
Zoro #
G514235582
UPC #
786674077653
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
2 yr
Lead Length
38 1/2 in
Shaft Length
18 11/16 in
Shaft Dia.
1/2 in
Overall Length
22 7/32 in
Bolt Circle Dia.
4 5/8 in
Length Less Shaft
3 17/32 in
Body Dia.
5 in
Shaft Diameter
1/2 in
Bolt Circle Diameter
4 5/8 in
Frame Size
42
Body Diameter
5 in
Wire Rope Length
22 7/32 in
Length
22 7/32 in

Details

Motor Thermal Protection
Auto
Motor Design
Permanent Split Capacitor
Includes
Resilient Base
Motor Bearings
Ball
Weight
14.13 lb
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
208V AC to 230V AC
HP
1/10, 1/15, 1/20, 1/25
Capacitor Required
Capacitor Included
Motor Mounting Type
Rigid Base
Nameplate RPM
1,075
Number of Shafts
2
RPM Range
1,001-1,100
Item
Direct Drive Blower Motor
Ins. Class
B
Full Load Amps
0.33 A, 0.42 A, 0.52 A, 0.75 A
Standards
CSA, UL
Phase
Single
Motor Application
HVAC/R
Motor Shaft Rotation
CCWLE
Voltage
208V AC to 230V AC
Motor Enclosure Design
Open Air-Over
Frame
42
Hz
60 Hz
Motor Service Factor
1
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
No. of Speeds
4
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Mounting Position
Horizontal
Bearing Type
Ball
Product Type
Room Air Conditioner Motor
Wattage
75 W
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Shaft Design
Keyed
Manufacturers Warranty
2 yr
Full Load Current @ 60 Hz
0.33 A, 0.42 A, 0.52 A, 0.75 A
Application
Room Air Conditioner
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Sub Application
Room Air Conditioner
Usable @ 208V
Usable at 208V
Frame Material
Steel
Drive Type
Direct Drive
Number of Speeds
4
Motor Enclosure Type
Open Air Over

Description

Fan Coil and Air Conditioner Motors
