Shop CENTURY

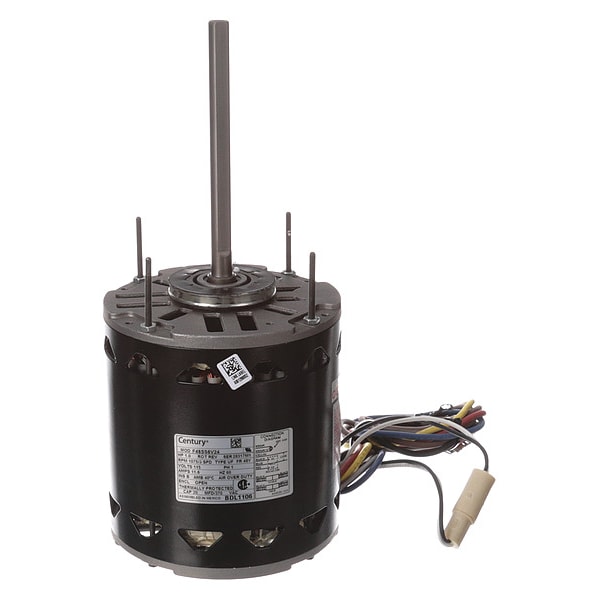

Direct Drive Fan/Blower Motor, 1 hp

  • Mfr # BDL1106
  • Zoro # G3261645
product price:
$
354.99
/ea
Free Shipping & Returns

Key Features

Duty
Continuous
No. of Speeds
3
Full Load Amps
11.6 A
Motor Mounting Type
Resilient Rings
Capacitor Required
Capacitor Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BDL1106
Zoro #
G3261645
UPC #
-
Country of Origin
India
Item
Fan and Blower Motor
Duty
Continuous
No. of Speeds
3
Full Load Amps
11.6 A
Motor Mounting Type
Resilient Rings
Capacitor Required
Capacitor Included
Voltage Compatibility
115V AC
Nominal Efficiency
60.6 %
HP
1
Max. Ambient Temp.
40 Degrees C
Motor Design
Permanent Split Capacitor
Voltage
115V AC
Ring to Ring Center
6 21/50 in
Motor Mounting Position
Horizontal
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Shaft Design
Double-Flat
Motor Enclosure Design
Open Enclosed
RPM Range
1,001-1,100
Nameplate RPM
1,075
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Motor Application
Direct Drive Fan/Blower
Phase
Single
Frame
48Y
Ins. Class
B
Standards
CSA Certified, UL Listed
Motor Sub Application
Direct Drive Fan/Blower
Motor Service Factor
1
Weight
21 lb
Motor Frame Material
Steel
Includes
(4) Snap Rings (615035)
Usable @ 208V
Not Usable at 208V
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Output Watts
0.75 kW
Inverter Rated
No
Frequency
60 Hz
Number of Speeds
3
Drive Type
Belt Drive
Frame Material
Steel
Shaft Design
Double Flat
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
11.6 A
Product Type
Fan and Blower Motor
Inverter Rating
Not Inverter Rated
Motor Enclosure Type
Open
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Wattage
750 W
Sub Application
General Purpose
Insulation Class
B
Mounting Position
Horizontal

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, 11.6 A Full Load Amps, 48Y Frame, Output Watts 0.75 kW, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Enclosed, Motor Frame Material Steel, Inverter Rated No, Motor Mounting Position Horizontal
