DC Motor, PM, TENV, 1/35 HP, 2350 rpm, 12VDC

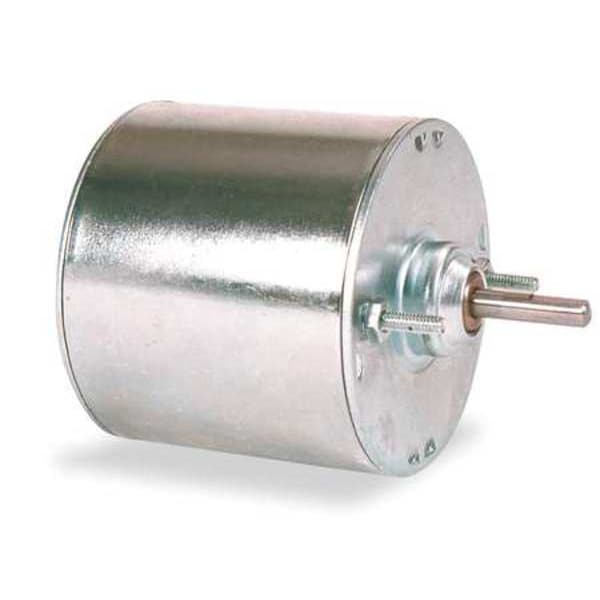

Dayton DC Motor, PM, TENV, 1/35 HP, 2350 rpm, 12VDC CCC-003
Tap to zoom
Hover or click to zoom
$49.21
  • Item: DC Permanent Magnet Motor
  • HP: 1/35
  • Voltage: 12V DC
See full product details
Orders over $75 ship free.

Total: $49.21

Dayton #CCC-003 Specifications

  • Item: DC Permanent Magnet Motor
  • HP: 1/35
  • Voltage: 12V DC
  • Nameplate RPM: 2,350
  • Shaft Dia.: 1/4 in
  • Frame: Non-Standard
  • Full Load Amps: 3.8 A
  • RPM Range: 1,801-3,000
  • Motor Thermal Protection: None
  • Body Dia.: 3 7/32 in
  • Ins. Class: A
  • Max. Ambient Temp.: 40 Degrees C
  • Mounting Stud Location: Shaft End
  • Voltage Compatibility: 12V DC
  • Sheath Dia.: 1/2 in
  • Motor Design: Permanent Magnet DC
  • Stud Quantity: (2) #8-32
  • Motor Application: HVAC/R
  • Bearings: Sleeve
  • Motor Sub Application: Direct Drive Fan/Blower
  • Shaft Length: 1 in
  • Motor Mounting Type: Stud
  • Motor Enclosure Design: Totally Enclosed Nonventilated
  • Features: 8 in L Positive Lead and 37 in L Negative Lead, Both with Ring Terminals
  • Rotation: CW/CCW
  • Length Less Shaft: 3 7/8 in
  • Face Mounting O.C.: 7/8 in x 1-7/16 in
  • RPM Group: 1801-3000
  • Overall Length: 4 7/8 in
  • Standards: 0
  • Motor Bearings: Sleeve
  • Motor Shaft Rotation: CW/CCW
  • Country of Origin (subject to change): Mexico

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/35 HP, Nameplate RPM 2,350, Voltage 12V DC, 3.8 A Full Load Amps, Non-Standard Frame, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Stud, Shaft Dia. 1/4 in, Motor Bearings Sleeve, Shaft Length 1 in, Overall Length 4 7/8 in, Length Less Shaft 3 7/8 in

Restrictions and Compliance

  • This item has been restricted from sale in the following states: CA
