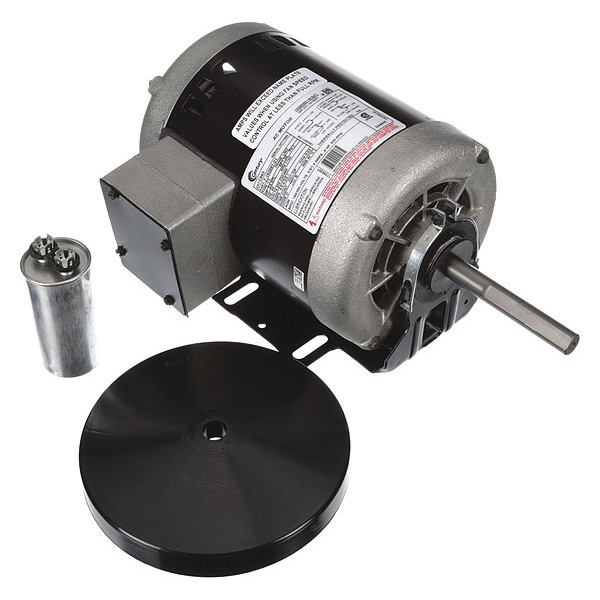

Century Direct Drive Motor, 3/4 hp C663 - main

Direct Drive Motor, 3/4 hp

  • Mfr # C663

  • Zoro # G2033635

product price: $700.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
3/4 hp
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C663
Zoro #
G2033635
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
10 1/4 in
Overall Length
14 7/16 in
Body Dia.
6.5 in
Shaft Length
4 1/8 in

Details

Motor Design
Permanent Split Capacitor
HP
3/4 hp
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CCW
Frame
56Z
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Application
Fans and Blowers
Max. Ambient Temp.
40 Degrees C
Number of Shafts
1
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Application
OEM Replacement
Replacement For
8-184787-01
Full Load Amps
4.8 to 4.2/2.1 A
Motor Bearings
Ball
Motor Thermal Protection
Auto
Item
Direct Drive Motor
Motor Sub Application
Condenser Fan
Standards
CSA, UL
Hz
60
Phase
Single
Ins. Class
B
Motor Service Factor
1
OEM Replacement Brand
Liebert
Capacitor Required
No
Nameplate RPM
1,100
Extended Thru-Bolts
No
Weight
39 lb
Motor Frame Material
Steel
Motor Shaft Design
Flat
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.8-4.2/2.1 A, 56Z Frame, OEM Replacement Brand Liebert, Replacement For 8-184787-01, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW
