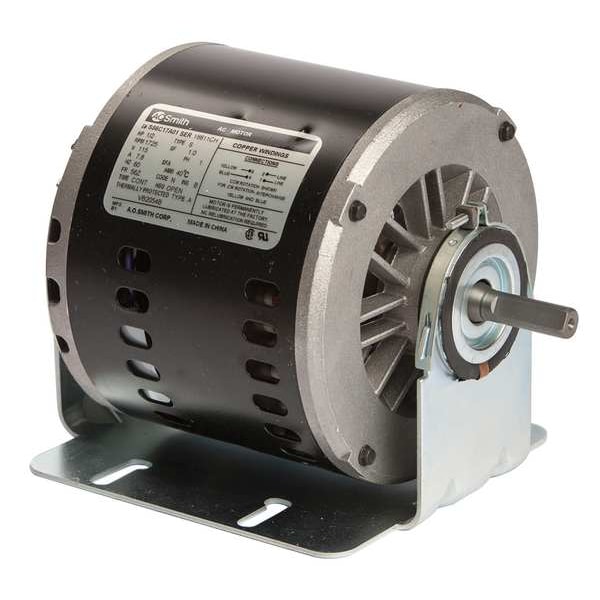

Evaporative Cooler Motor, 1/2 hp

  • Mfr # VB2054BV1
  • Zoro # G2428815
product price:
$
261.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2
Full Load Amps
7.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VB2054BV1
Zoro #
G2428815
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 7/16 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
7 15/16 in
Ring Dia.
2 1/2 in
Shaft Length
1 1/2 in
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
1/2 in
Body Diameter
6.4 in
Frame Size
56Z
Wire Rope Length
9 7/16 in
Length
9 7/16 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2
Full Load Amps
7.8 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
1
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Standards
CSA, UL
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Ring to Ring Center
7 7/16 in
Finish
Varnish
Includes
Hardware, Switch Parts
Features
Moisture Resistant
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Number of Speeds
1
Frame Material
Steel
Capacitor Required
Capacitor Not Required
Product Type
Evaporative Cooler Motor
Application
Evaporative Cooler
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Wattage
370 W
Sub Application
Evaporative Cooler
Full Load Current @ 60 Hz
7.8 A
Insulation Class
B
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.8 A Full Load Amps, 56Z Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
