Shop CENTURY

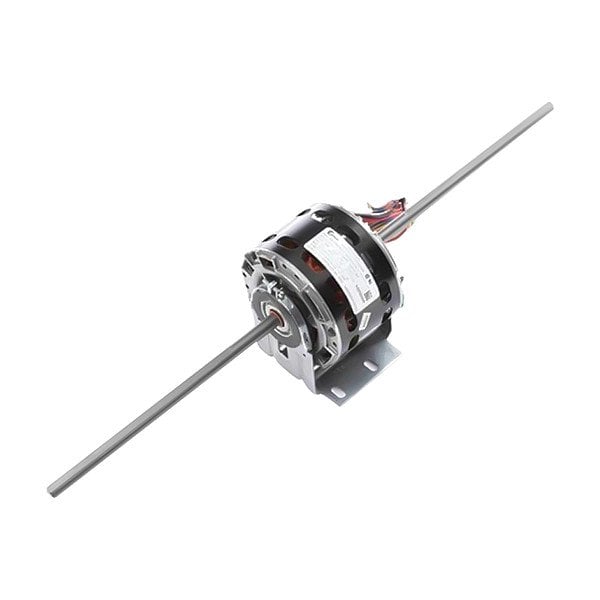

Fan Coil / Air Conditioner Motor

  • Mfr # 89PSC

  • Zoro # G709935570

product price:  $221.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/10
RPM Range
1,001-1,100
Nameplate RPM
1,050
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
89PSC
Zoro #
G709935570
UPC #
815585026624
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
10 3/4 in
Overall Length
24 15/16 in
Body Dia.
5 in
Length Less Shaft
3 9/16 in
Lead Length
54 in
Frame Size
42
Shaft Diameter
1/2 in
Body Diameter
5 in
Wire Rope Length
24 15/16 in

Details

Item
Room Air Conditioner Motor
Motor Design
Permanent Split Capacitor
HP
1/10
RPM Range
1,001-1,100
Nameplate RPM
1,050
Voltage
115V AC
Frame
42
Motor Mounting Type
Resilient Base
Phase
Single
Motor Enclosure Design
Open Air-Over
Motor Bearings
Ball
Standards
CSA
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Application
Fan Coil Motor
Motor Mounting Position
Horizontal
Motor Service Factor
1
Includes
AC Electric Motor
Motor Sub Application
Fan Coil, Air Conditioner Motor
No. of Speeds
5
Full Load Amps
1.62 A
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Shaft Rotation
CWLE
Capacitor Required
Capacitor Not Included
Voltage Compatibility
115V AC
Duty Cycle
Continuous
Weight
11 lb
Motor Frame Material
Steel
Product Type
Room Air Conditioner Motor
Wattage
75 W
Full Load Current @ 60 Hz
1.62 A
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Insulation Class
B
Duty
Continuous
Number of Speeds
5
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Application
Room Air Conditioner
Mounting Position
Horizontal
Frame Material
Steel
Sub Application
Room Air Conditioner
Bearing Type
Ball

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 5, Voltage 115V AC, 1.62 A Full Load Amps, 42 Frame, Output Watts 75 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
