Shop CENTURY

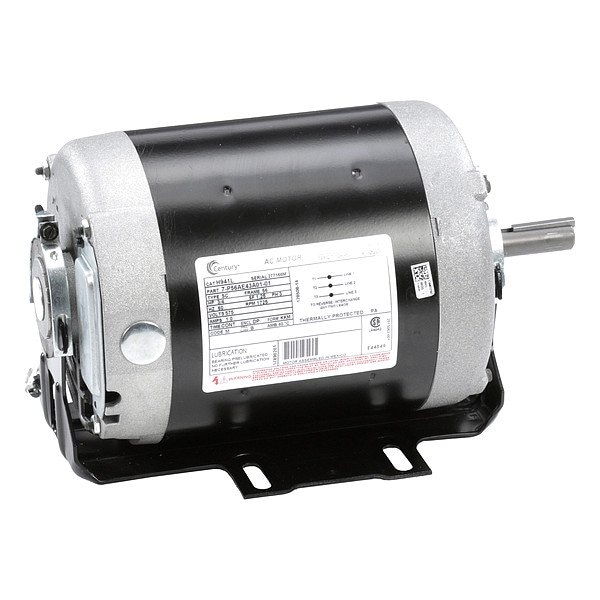

General Purpose Motor, 56, Rigid Base

  • Mfr # H941L

  • Zoro # G911931094

product price:  $602.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3/4
RPM Range
1725
Nameplate RPM
1,725
Voltage
575V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H941L
Zoro #
G911931094
UPC #
786674060815
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 1/2 in
Overall Length
11 7/16 in
Shaft Length
1 15/16 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
3/4
RPM Range
1725
Nameplate RPM
1,725
Voltage
575V
Frame
56
Motor Mounting Type
Rigid Base
Phase
Three
Motor Enclosure Design
Open Drip Proof
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
575 V
Hz
60 Hz
Full Load Amps
1.0 A
Motor Bearings
Ball
Duty Cycle
Continuous
Standards
CSA Certified, UL Listed
Usable @ 200V
Not Usable at 200V
Weight
28 lb
Ins. Class
B
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Motor Application
HVAC/R
Motor Shaft Rotation
CW/CCW
Bearing Type
Ball
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.25
Full Load Current @ 60 Hz
1.0 A
Number of Speeds
1
Application
HVAC/R
Nameplate Voltage @ 50 Hz
208/230/460V AC
Insulation Class
B
Nameplate RPM @ 50 Hz
1,425 RPM
Frame Material
Steel
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,725, Frame 56, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 1.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, 1725, CSA Certified, UL Listed
