Century

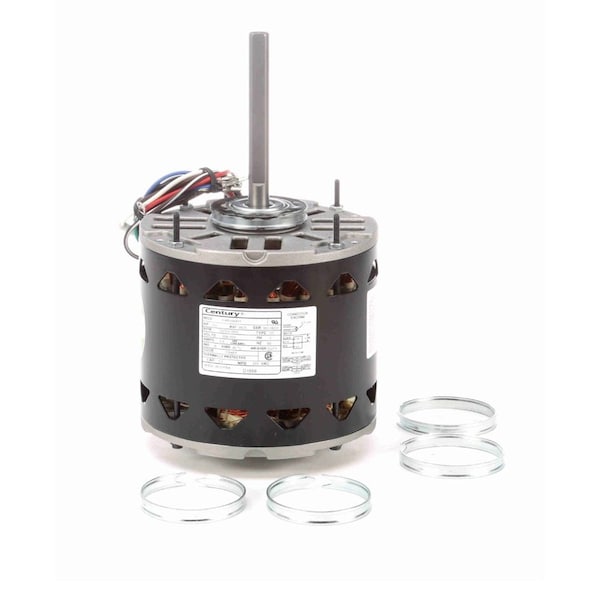

Motor, PSC, 1/2 HP, 1075,208-230V, 48Y, OAO
- Zoro #: G1334584
- Mfr #: D1056
Tap to zoom
Hover or click to zoom
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $141.73
Century #D1056 Specifications
- Zoro #: G1334584
- Mfr #: D1056
- Phase: Single
- Ins. Class: B
- Motor Enclosure Design: Open Air-Over
- Ring to Ring Center: 5 7/16 in
- Hz: 60 Hz
- Voltage: 208-230V AC
- Full Load Amps: 3.6
- Motor Shaft Design: Flat
- Length Less Shaft: 5 7/8 in
- Max. Ambient Temp.: 40 Degrees C
- Motor Sub Application: Direct Drive Fan/Blower
- Motor Application: HVAC/R
- RPM Range: 1,001-1,100
- Stud Size: #8-32
- Motor Bearings: Sleeve
- Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
- Item: Direct Drive Blower Motor
- Motor Design: Permanent Split Capacitor
- Motor Mounting Type: Ring
- Resilient Ring Dia.: 2 1/4 in
- Motor Shaft Rotation: CW/CCW
- Capacitor Required: 2MDV6
- Motor Mounting Position: Horizontal
- Duty: Continuous
- HP: 1/2
- Frame: 48
- Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
- Shaft Length: 4 1/2 in
- Body Dia.: 5 5/8 in
- Application: Blowers, Fans and Air Circulators
- Motor Service Factor: 1
- Shaft Dia.: 1/2 in
- Motor Thermal Protection: Auto
- No. of Speeds: 3
- Nameplate RPM: 1,075
- Standards: CSA Certified, UL Recognized
- Motor Frame Material: Steel
- Mounting Holes: (4) #8-32
- Usable @ 208V: Yes
- Bolt Circle Dia.: 5 1/8 in
- Overall Length: 9 7/8 in
- Number of Shafts: 1
- Usable @ 200V: No
- Includes: Belly Band, Resilient Mounting Ring
- Weight: 15 lb
- Lead Length: 26 in
- Country of Origin (subject to change): India
Description
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 3.1, 48 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 26 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Resilient Ring, Motor Mounting Position Horizontal, Number of Shafts 1
