Shop CENTURY

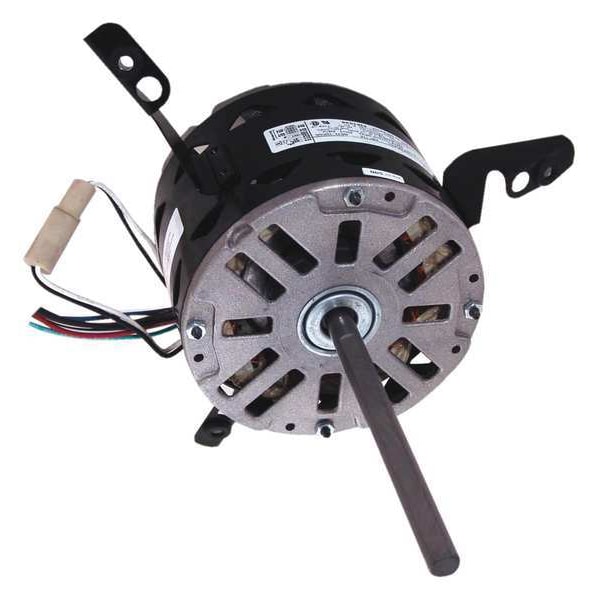

Motor, PSC, 1/2 HP, 1075,208-230V, 48Y, OAO

  • Mfr # FM1056
  • Zoro # G0380143
product price:
$
285.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC
Motor Sub Application
Room Air Conditioner
Body Dia.
5 5/8 in
Motor Enclosure Design
Open Air-Over
No. of Speeds
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FM1056
Zoro #
G0380143
UPC #
-
Country of Origin
India

Dimensions

Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
6 in
Length Less Shaft
4 7/8 in
Lead Length
26 in
Overall Length
10 7/8 in
Frame Size
48Y
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
10 7/8 in
Length
10 7/8 in

Details

Voltage
208V AC to 230V AC
Motor Sub Application
Room Air Conditioner
Motor Enclosure Design
Open Air-Over
No. of Speeds
3
Frame
48Y
Application
Room Air Conditioner
Ins. Class
B
Motor Service Factor
1
Item
Room Air Conditioner Motor
Hz
60 Hz
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Bearings
Ball
Motor Mounting Type
T-Flex
HP
1/2
Max. Ambient Temp.
50 Degrees C
Motor Application
HVAC/R
Motor Mounting Position
Horizontal
Standards
CSA Certified, UL Recognized
Capacitor Required
Capacitor Not Included
Phase
Single
Full Load Amps
3.03 A
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Flat
Motor Design
Permanent Split Capacitor
RPM Range
1,001-1,100
Duty
Continuous
Nameplate RPM
1,075
Motor Thermal Protection
Auto
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Mounting Holes
4
Weight
17 lb
Motor Frame Material
Steel
Number of Shafts
1
Mounting
Torsion Flex Bracket
Number of Speeds
3
Full Load Current @ 60 Hz
3.03 A
Shaft Design
Flat
Bearing Type
Ball
Motor Enclosure Type
Open Air Over
Mounting Position
Horizontal
Frequency
60 Hz
Insulation Class
B
Wattage
370 W
Ambient Temperature - Maximum
50 Degrees C
Product Type
Room Air Conditioner Motor
Sub Application
General Purpose
Frame Material
Steel
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 3.03 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex
