Shop CENTURY

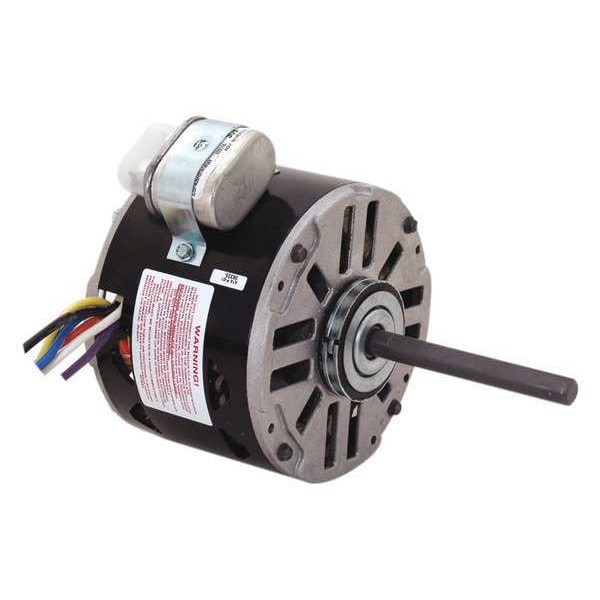

Mtr, PSC, 1/8 HP, 1550, 115/208-230V, 48Y, OAO

  • Mfr # 9704

  • Zoro # G3213506

product price:  $205.99
/ea
Free Shipping & Returns

Key Features

Shaft Length
4 1/2 in
RPM Range
1,501-1,600
Resilient Ring Dia.
2 1/4 in
Motor Service Factor
1
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9704
Zoro #
G3213506
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
4 1/2 in
Resilient Ring Dia.
2 1/4 in
Shaft Dia.
1/2 in
Length Less Shaft
5 1/8 in
Body Dia.
5 5/8 in
Overall Length
9 1/8 in
Lead Length
12 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48Y
Resilient Ring Diameter
2 1/4 in
Wire Rope Length
9 1/8 in

Details

RPM Range
1,501-1,600
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
HVAC/R
Frame
48Y
Duty
Continuous
Motor Design
Permanent Split Capacitor
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,550
Application
Fan/Blower
Motor Thermal Protection
Auto
Item
Fan and Blower Motor
Includes
Resilient Mounting Ring
Voltage
115/208-230V AC
Ring to Ring Center
4 11/16 in
Motor Enclosure Design
Open Air-Over
Standards
CSA Certified, UL Recognized
Phase
Single
Motor Shaft Design
Flat
Motor Shaft Rotation
CCWLE
Hz
60 Hz
Motor Mounting Type
Ring
Ins. Class
B
No. of Speeds
1
Capacitor Required
Capacitor Included
Motor Mounting Position
All Angle
Full Load Amps
2.7/1.2/1.4 A
HP
1/8
Motor Sub Application
Direct Drive Fan/Blower
Number of Shafts
1
Weight
11 lb
Usable @ 208V
Usable at 208V
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Mounting Holes
4
Motor Frame Material
Steel
Number of Speeds
1
Mounting
Ring
Wattage
100 W
Insulation Class
B
Bearing Type
Ball
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Mounting Position
All Angle
Drive Type
Direct Drive
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
2.7/1.2/1.4 A
Sub Application
General Purpose
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 2.7/1.2/1.4 A Full Load Amps, 48Y Frame, Output Watts 100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
