Shop CENTURY

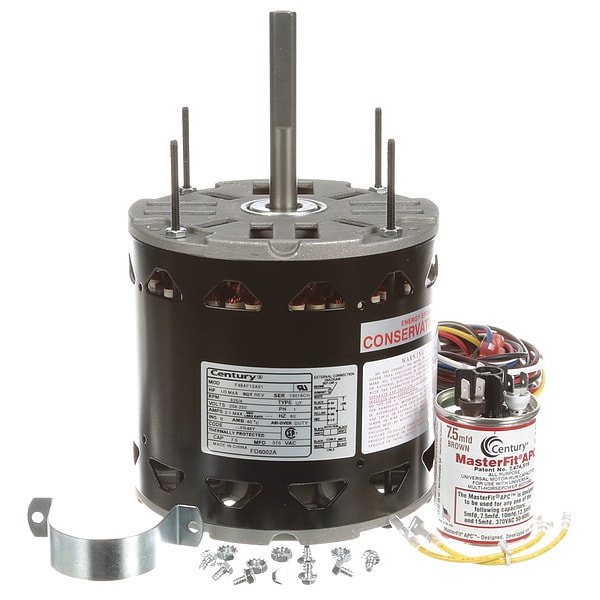

Direct Drive Blower Motor, 1/3, 1/8HP

  • Mfr # FD6002A
  • Zoro # G4326150
product price:
$
224.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC
Manufacturers Warranty Length
1 yr
RPM Range
0-1,000
No. of Speeds
4
Mounting Stud Length
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD6002A
Zoro #
G4326150
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Mounting Stud Length
1 1/2 in
Length Less Shaft
5 3/8 in
Body Dia.
5 5/8 in
Overall Length
8 7/8 in
Stud Size
#8-32
Bolt Circle Dia.
5 3/16 in
Shaft Dia.
1/2 in
Shaft Length
3 1/2 in
Lead Length
36 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Bolt Circle Diameter
5 3/16 in
Shaft Diameter
1/2 in
Frame Size
48
Wire Rope Length
8 7/8 in
Length
8 7/8 in

Details

Voltage
208V AC to 230V AC
RPM Range
0-1,000
No. of Speeds
4
Item
Fan and Blower Motor
Frame
48
Ins. Class
B
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Capacitor Included
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Mounting Stud Pattern
3 5/8 in x 3 5/8 in OSE
Nameplate RPM
825
Motor Mounting Type
Ring/Stud
HP
1/3, 1/8
Mounting Stud Location
4/Shaft End
Motor Thermal Protection
Auto
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Nominal Efficiency
0.6 %
Motor Sub Application
Direct Drive Fan/Blower
Phase
Single
Full Load Amps
2.01 A
Hz
60 Hz
Motor Application
HVAC/R
Motor Enclosure Design
Open Air-Over
Duty
Continuous
Motor Design
Permanent Split Capacitor
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
14 lb
Stud Quantity
4
Includes
Capacitor
Usable @ 208V
Usable at 208V
Number of Shafts
1
Mounting Holes
(4) #8-32
Number of Speeds
4
Wattage
250 W
Mounting Position
Horizontal
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Shaft Design
Flat
Application
Fan/Blower
Motor Enclosure Type
Open Air Over
Product Type
Fan and Blower Motor
Manufacturers Warranty
1 yr
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Sub Application
General Purpose
Full Load Current @ 60 Hz
2.01 A
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 4, Voltage 208-230V AC, 2.01 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
