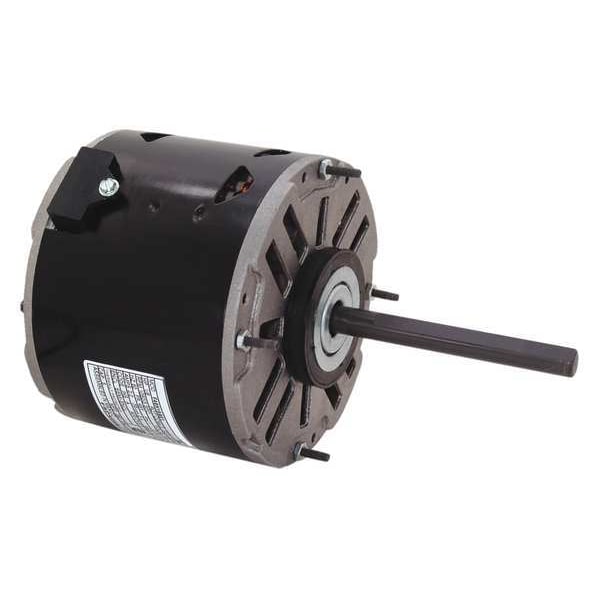

Motor, PSC, 1/8 HP, 1050 RPM, 115V, 48Y, OAO
Mfr # FSP4006S
Zoro # G2772585
product price:Â $233.99
/ea
Free Shipping & Returns
Key Features
Motor Bearings
Ball
Stud Size
#8-32
Motor Design
Permanent Split Capacitor
Motor Application
HVAC/R
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FSP4006S
Zoro #
G2772585
UPC #
-
Country of Origin
India
Dimensions
Stud Size
#8-32
Shaft Dia.
1/2 in
Bolt Circle Dia.
5 3/16 in
Shaft Length
5 7/16 in
Length Less Shaft
5 3/8 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Lead Length
29 in
Overall Length
10 5/16 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115V AC, 2.04 A Full Load Amps, 48Y Frame, Output Watts 100 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
