Shop CENTURY

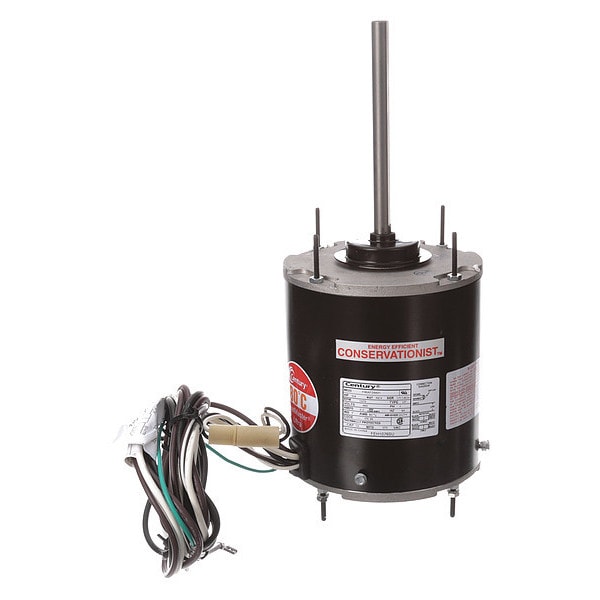

Condenser Fan Motor, 3/4 hp

  • Mfr # FEH1076SU
  • Zoro # G4025659
product price:
$
459.99
/ea
Free Shipping & Returns

Key Features

Motor Service Factor
1
Overall Length
13 1/2 in
Phase
Single
Motor Mounting Type
Stud
Motor Sub Application
Condenser Fan
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FEH1076SU
Zoro #
G4025659
UPC #
-
Country of Origin
India

Dimensions

Overall Length
13 1/2 in
Bolt Circle Dia.
5 1/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
6 1/2 in
Stud Size
#8-32
Length Less Shaft
7 in
Lead Length
48 in
Mounting Stud Length
1 1/8 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Frame Size
48
Wire Rope Length
13 1/2 in
Length
13 1/2 in

Details

Motor Service Factor
1
Phase
Single
Motor Mounting Type
Stud
Motor Sub Application
Condenser Fan
Hz
60 Hz
Max. Ambient Temp.
80 Degrees C
Item
Condenser Fan Motor
RPM Range
1,001-1,100
Motor Thermal Protection
Auto
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Bearings
Ball
Motor Mounting Position
All Angle
Nominal Efficiency
68 %
Ins. Class
F
Motor Application
HVAC/R
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Mounting Stud Pattern
1 13/16 in x 1 13/16 in BE
Standards
UL Recognized and CSA Certified
Duty
Continuous
Capacitor Required
Capacitor Not Included
Features
High Ambient, Rheem Mounting Holes
Motor Design
Permanent Split Capacitor
Voltage
460V AC
Full Load Amps
2.2 A
HP
3/4
Stud Quantity
4
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,075
No. of Speeds
1
Motor Flange Type
Non-Ventilated
Usable @ 208V
Not Usable at 208V
Output Watts
560 W
Weight
23 lb
Removable Base
Yes
Includes
Belly Band, Removable Base
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Bearing Type
Ball
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
F
Frame Material
Steel
Ambient Temperature - Maximum
80 Degrees C
Shaft Design
Double Flat
Application
Condenser Fan
Product Type
Condenser Fan Motor
Wattage
560 W
Drive Type
Direct Drive
Mounting Position
All Angle
Full Load Current @ 60 Hz
2.2 A
Flange Type
Non-Ventilated
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Sub Application
Condenser Fan
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 2.2 A Full Load Amps, 48 Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
