Shop CENTURY

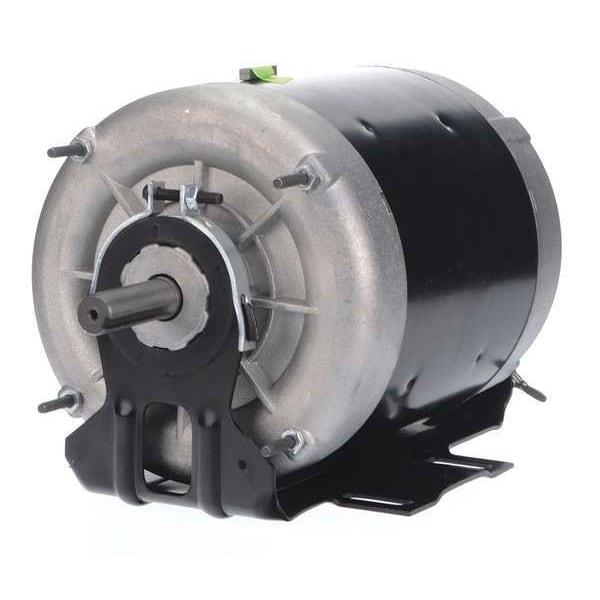

Motor, Split Ph, 1/2 HP, 1725,115V, 56, TEAO

  • Mfr # P56S17TRS40002A2A

  • Zoro # G1304335

product price:
$
336.99
/ea
Free Shipping & Returns

Key Features

Hz
60 Hz
Body Dia.
6 1/2 in
Includes
Resilient Base
Standards
CSA Certified, UL Recognized
Length Less Shaft
9 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P56S17TRS40002A2A
Zoro #
G1304335
UPC #
-
Country of Origin
Mexico
Hz
60 Hz
Item
Fan and Blower Motor
Includes
Resilient Base
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Keyed
Ins. Class
B
Mounting Stud Location
4/Shaft End
No. of Speeds
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Design
Split-Phase
Duty
Continuous
Motor Thermal Protection
Auto
Ring to Ring Center
9 3/16 in
Full Load Amps
7.1 A
Nameplate RPM
1,725
Phase
Single
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Bearings
Ball
Motor Mounting Type
Cradle Base
Capacitor Required
Capacitor Not Required
Motor Service Factor
1
Motor Application
HVAC/R
Application
Fan/Blower
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
Horizontal
Voltage
115V AC
Motor Sub Application
Direct Drive Fan/Blower
Max. Ambient Temp.
40 Degrees C
Frame
56
HP
1/2
RPM Range
1,701-1,800
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
0.7 %
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
25.8 lb
Duty Cycle
Continuous
Mounting
Cradle Base
Number of Speeds
1
Shaft Design
Keyed
Sub Application
General Purpose
Insulation Class
B
Wattage
375 W
Drive Type
Direct Drive
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Ball
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
7.1 A
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.1 A Full Load Amps, 56 Frame, Output Watts 375 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
