Shop CENTURY

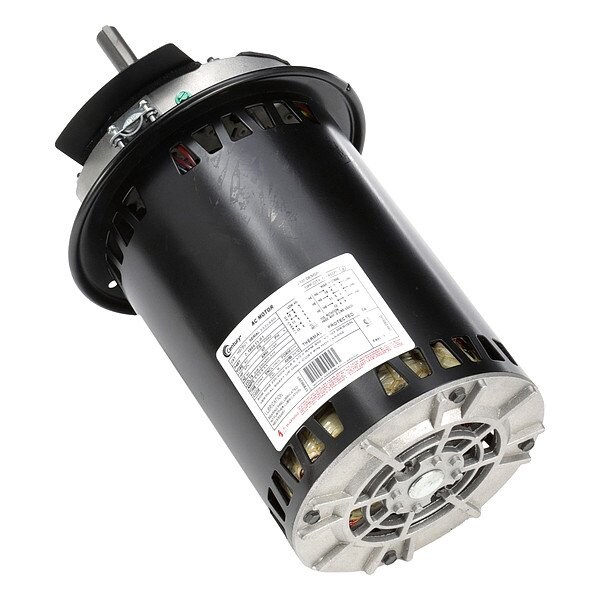

OEM Replacement Motor

  • Mfr # H978V1

  • Zoro # G611931134

product price:  $1,209.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
SPL
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
208/575V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H978V1
Zoro #
G611931134
UPC #
786674070517
Country of Origin
Mexico

Dimensions

Shaft Length
3 5/8 in
Shaft Dia.
5/8 in
Overall Length
15 1/8 in
Length Less Shaft
11 1/2 in
Frame Size
56Z
Shaft Diameter
5/8 in
Wire Rope Length
15 1/8 in

Details

Item
OEM Replacement Motor
Motor Design
Three-Phase
HP
SPL
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
208/575V AC
Frame
P56Z
Phase
Three
Motor Enclosure Design
Open Air-Over
Standards
CSA Certified, UL Recognized
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
No. of Speeds
1
Motor Bearings
Ball
Voltage Compatibility
208V AC, 230V AC, 460V AC, 575V AC
Full Load Amps
3.4 A, 5.5/2.8 A
Ins. Class
B
Motor Shaft Design
Keyed
Motor Service Factor
1
Motor Sub Application
OEM Replacement
Usable @ 208V
Usable at 208V
Max. Ambient Temp.
70 Degrees C
Motor Shaft Rotation
CW/CCW
Weight
44 lb
Motor Application
OEM Replacement
Capacitor Required
Capacitor Not Included
Insulation Class
B
Frame Material
Steel
Number of Speeds
1
Product Type
OEM Replacement Motor
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
3.4 A, 5.5/2.8 A
Compatible Brand
Century
Bearing Type
Ball
Duty
Continuous
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over

Description

OEM Replacement Motor, Three Phase, Motor Design Three-Phase, Not Applicable HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460-575V AC, Full Load Amps 3.4 A, 5.5/2.8 A, 56Z Frame, Replacement For Not Applicable, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Frame Material Steel
