Shop CENTURY

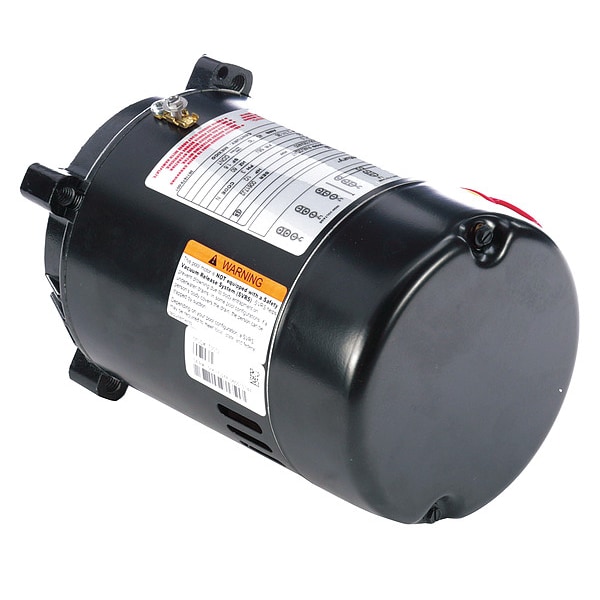

Pool Pump Motor, 3-Phase, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # T3052
  • Zoro # G0787818
product price:
$
303.99
/ea
Sold in multiples of 4 for $1,215.96
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T3052
Zoro #
G0787818
UPC #
-
Country of Origin
Mexico
Item
Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.6
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCW
Voltage
208V AC to 230V AC, 460V AC
Phase
Three
Motor Mounting Type
Face
Full Load Amps
2.0/1.0 A
Hz
60 Hz
Motor Thermal Protection
None
Ins. Class
B
Standards
CSA
Motor Sub Application
Jet Pump
Motor Bearings
Ball
Motor Application
Pool and Spa Pump
Voltage Compatibility
208V AC, 230V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
Shaft Material
Stainless Steel
Motor Mounting Position
Horizontal
Motor Frame Material
Rolled Steel
Usable @ 208V
Usable at 208V
No. of Speeds
1
Weight
16 lb
Duty Cycle
Continuous
Usable @ 200V
Usable at 200V
Motor Shaft Design
Threaded
Conduit Box Location
Interior
Regreasable Bearings
Permanently Lubricated Bearings
Inverter Rated
Not Inverter Rated
Number of Wires
9
Max. SF Amps
2.70/1.350 A
Product Type
Pump Motor
Shaft Design
Threaded
Application
Pump
Frequency
60 Hz
Bearing Type
Ball
Service Factor Current
2.70/1.350 A
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.6
Bearing Lubrication Type
Permanently Lubricated Bearings
Sub Application
Jet Pump
Frame Material
Steel
Manufacturers Warranty
2 yr
Mounting Position
Horizontal
Full Load Current @ 60 Hz
2.0/1.0 A
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof

Description

Pool Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 3/8 in, Conduit Box Location Interior, Conduit Box Position Not Applicable, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 2.0/1.0 A, Full Load Amps @ 50Hz Not Applicable, Height 5 5/8 in, HP 1/2, HP @ 50Hz Not Applicable, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 8 5/8 in, Manufacturers Warranty Length 2 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 2.70/1.350 A
