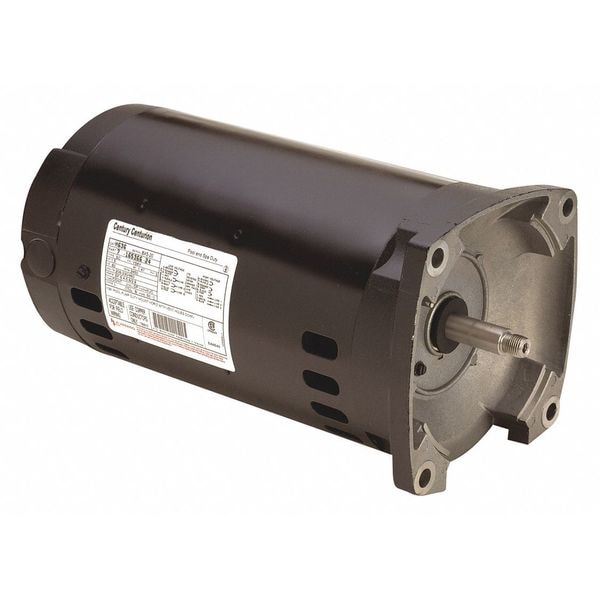

Pool Pump Motor, 3-Phase, 1/2 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # H491
  • Zoro # G0318464
product price:
$
391.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.9
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H491
Zoro #
G0318464
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Overall Length
12 3/16 in
Length Less Shaft
11 5/16 in
Height
6 1/2 in
Bolt Circle Dia.
7 1/8 in
Shaft Dia. (In.)
5/8
Bolt Circle Diameter
7 1/8 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56Y
Wire Rope Length
12 3/16 in
Length
12 3/16 in

Details

Item
Square Flange Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.9
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CW/CCW
Phase
Three
Voltage
208V AC to 230V AC, 460V AC
Full Load Amps
3.2-3.0/1.50 A
Motor Mounting Type
Face
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Max. Ambient Temp.
50 Degrees C
Shaft Material
Stainless Steel
Hz
60 Hz
Motor Efficiency Group
Standard Efficient
Motor Sub Application
Pool and Spa Pump
Motor Application
Pump
Standards
CSA, UL
Ins. Class
B
Design
Two Compartment
Motor Thermal Protection
None
Motor Bearings
Ball
Motor Shaft Design
Threaded
Weight
21 lb
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.9
Product Type
Pump Motor
Application
Pump
Insulation Class
B
Frame Material
Steel
Bearing Type
Ball
Number of Speeds
1
Ambient Temperature - Maximum
50 Degrees C
Sub Application
Pool and Spa Pump
Frequency
60 Hz
Number of Wires
9
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Threaded
Full Load Current @ 60 Hz
3.2-3.0/1.5 A

Description

Square Flange Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Frame 56Y, Hz 60 Hz, Full Load Amps 3.2-3.0/1.50, Height 6 1/2 in, HP 1/2, Ins. Class B, Length Less Shaft 11 5/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
