Shop CENTURY

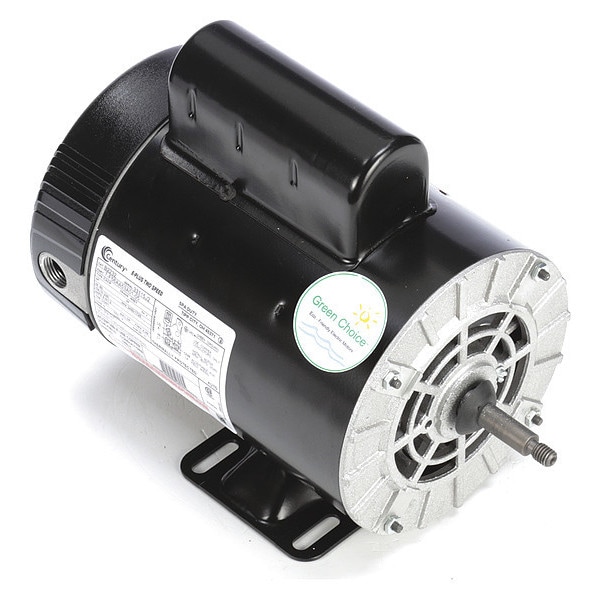

Pool Pump Motor, Capacitor-Start/Run, 1, 1/10 HP, 56Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B2232
  • Zoro # G4482807
product price:
$
416.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1, 1/10
RPM Range
3,001-3,600
Motor Service Factor
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B2232
Zoro #
G4482807
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 3/8 in
Length Less Shaft
9 5/8 in
Body Dia.
6.6 in
Overall Length
12 in
Bolt Circle Dia.
5 13/16 in
Height
11 in
Shaft Dia. (In.)
1/2
Frame Size
56Y
Bolt Circle Diameter
5 13/16 in
Shaft Diameter
1/2 in
Body Diameter
6.6 in
Wire Rope Length
12 in
Length
12 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1, 1/10
RPM Range
3,001-3,600
Motor Service Factor
1
Nameplate RPM
3,450/1,725
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
230V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/1.2 A
Shaft Material
303 Stainless Steel
Motor Flange Material
Aluminum
Motor Thermal Protection
Auto
Motor Efficiency Group
Standard Efficient
Finish
Black
Ins. Class
F
Ambient Temperature
50 Degrees C
Standards
CSA (LR642), UL (E44549)
Motor Sub Application
Pool and Spa Pump
Shaft
Threaded 3/8-16 UNC-2A RH
Hz
60 Hz
Motor Bearings
Ball
Motor Application
Pump
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Max. Ambient Temp.
50 Degrees C
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Threaded
No. of Speeds
2
Weight
26 lb
Motor Mounting Position
Horizontal
Conduit Box Position
F3
Application
Pump
Shaft Design
Threaded
Number of Speeds
2
Mounting Position
Horizontal
Product Type
Pump Motor
Ambient Temperature - Maximum
50 Degrees C
Number of Wires
15
Efficiency Rating
Standard Efficiency (IE1)
Sub Application
Pool and Spa Pump
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Bearing Type
Ball
Full Load Current @ 60 Hz
6.0/1.2 A
Insulation Class
F

Description

Pool and Spa Pump Motor, Body Dia. 6.6 in, Bolt Circle Dia. 5 13/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 6.0/1.2, Height 11 in, HP 1, 1/10, Ins. Class F, Length Less Shaft 9 5/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
