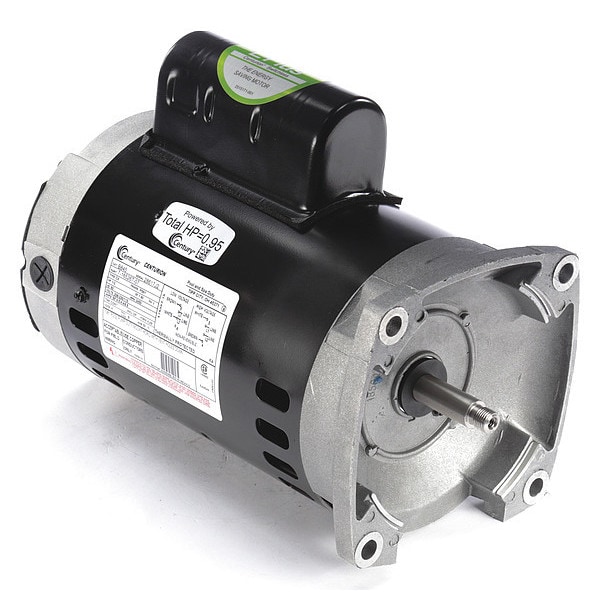

Pool Pump Motor, Permanent Split Capacitor, 1/2 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # B845

  • Zoro # G4479011

product price:
$
360.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.9
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B845
Zoro #
G4479011
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.9
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115/208-230V AC
Full Load Amps
8.8/4.5-4.4
Motor Mounting Type
Face
Ins. Class
B
Motor Flange Material
Aluminum
Motor Sub Application
Pool and Spa Pump
Standards
CSA, UL
Ambient Temperature
50 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Hz
60 Hz
Shaft
Threaded 1/2-20 UNF-2A RH
Motor Application
Pump
Motor Efficiency Group
Energy Efficient
Motor Thermal Protection
Auto
Motor Bearings
Ball
Finish
Black
Shaft Material
Stainless Steel
Max. Ambient Temp.
50 Degrees C
Motor Mounting Position
Horizontal
Usable @ 208V
Usable at 208V
Weight
20 lb
Max. SF Amps
8.8
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Threaded
Motor Frame Material
Steel
No. of Speeds
1
Duty Cycle
Continuous
Conduit Box Position
F3
Application
Pump
Nameplate Service Factor @ 60 Hz
1.9
Mounting Position
Horizontal
Product Type
Pump Motor
Insulation Class
B
Number of Wires
8
Shaft Design
Threaded
Bearing Type
Ball
Number of Speeds
1
Ambient Temperature - Maximum
50 Degrees C
Frequency
60 Hz
Service Factor Current
8.8 A
Motor Enclosure Type
Open Drip Proof
Sub Application
Pool and Spa Pump
Frame Material
Steel
Full Load Current @ 60 Hz
8.8/4.5-4.4 A

Description

Pool and Spa Pump Motor, Bolt Circle Dia. 7 1/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 8.8/4.5-4.4, Height 11 in, HP 1/2, Ins. Class B, Length Less Shaft 11 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 8.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
