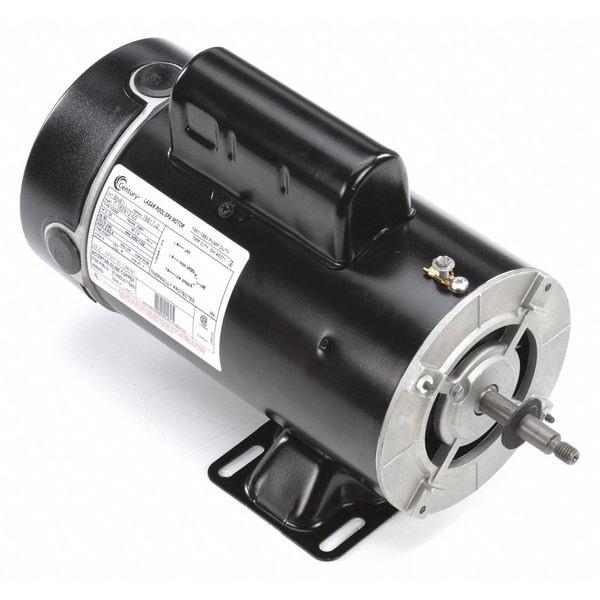

Pool Pump Motor, Capacitor-Start/Run, 1/4, 2 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # BN61
  • Zoro # G1151385
product price:
$
423.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/4, 2
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BN61
Zoro #
G1151385
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/4, 2
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
3,450/1,725
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
230V AC
Phase
Single
Motor Mounting Type
Hole
Full Load Amps
8.5/2.8 A
Standards
1563 Approvable, UL 1081
Hz
60 Hz
Motor Application
Pump
Shaft Material
Steel
Finish
Black
Motor Thermal Protection
Auto
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Shaft
Threaded 3/8-16 UNC-2A RH
Motor Sub Application
Pool and Spa Pump
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Includes
12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
No. of Speeds
2
Weight
30 lb
Motor Frame Material
Steel
Motor Shaft Design
Threaded
Usable @ 208V
Not Usable at 208V
Application
Pump
Number of Speeds
2
Shaft Type
Threaded 3/8-16 UNC-2A
Number of Wires
13
Frame Material
Steel
Product Type
Pump Motor
Shaft Design
Threaded
Insulation Class
B
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Horizontal
Sub Application
Pool and Spa Pump
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Full Load Current @ 60 Hz
8.5/2.8 A
Nameplate Voltage @ 60 Hz
230V AC
Nameplate RPM @ 60 Hz
3,450/1,725 RPM
Nameplate Horsepower @ 60 Hz
1/4 hp, 2 hp

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 3/8 in
Bolt Circle Dia.
5 1/8 in
Overall Length
13 5/16 in
Body Dia.
5.8 in
Height
11 in
Length Less Shaft
10 15/16 in
Shaft Dia. (In.)
1/2
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.8 in
Frame Size
48Y
Wire Rope Length
13 5/16 in
Length
13 5/16 in

Description

Pool and Spa Pump Motor, Body Dia. 5.8 in, Bolt Circle Dia. 5 1/8 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 8.5/2.8, Height 11 in, HP 1/4, 2, Includes 12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle, Ins. Class B, Length Less Shaft 10 15/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Enclosure Design Open Dripproof

Restrictions

This item has been restricted from sale in the following states: NY
