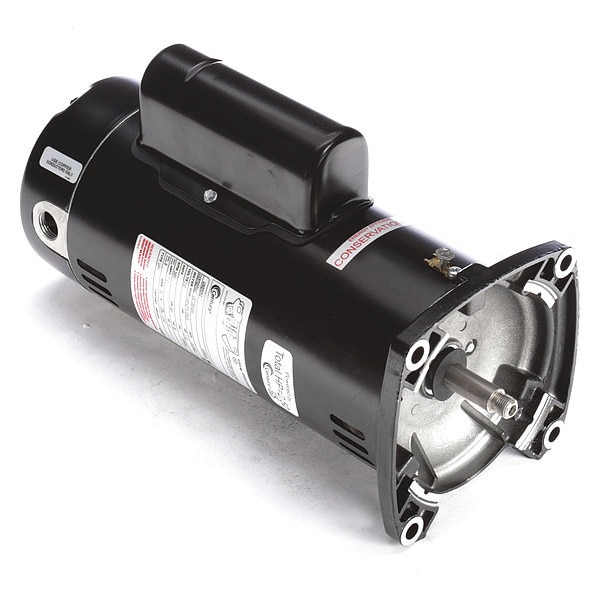

Pool Pump Motor, Capacitor-Start/Run, 2 1/2 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # USQ1252
  • Zoro # G2494396

product price:
$
527.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2 1/2
RPM Range
3,001-3,600
Motor Service Factor
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
USQ1252
Zoro #
G2494396
UPC #
-
Country of Origin
China
Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2 1/2
RPM Range
3,001-3,600
Motor Service Factor
1
Nameplate RPM
3,450 RPM
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
230V AC
Full Load Amps
11.2 A
Motor Mounting Type
Face
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Motor Efficiency Group
High Efficient
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Motor Thermal Protection
Auto
Motor Application
Pump
Design
Two Compartment
Motor Sub Application
Pool and Spa Pump
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Shaft Material
Stainless Steel
Standards
CSA, UL
Motor Bearings
Ball
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Weight
32 lb
Motor Shaft Design
Threaded
Application
Pump
Ambient Temperature - Maximum
50 Degrees C
Frequency
60 Hz
Frame Material
Steel
Full Load Current @ 60 Hz
11.2 A
Nameplate Service Factor @ 60 Hz
1
Sub Application
Pool and Spa Pump
Insulation Class
B
Number of Wires
8
Number of Speeds
1
Shaft Design
Threaded
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Mounting Position
Horizontal
Nameplate Voltage @ 60 Hz
230V AC
Nameplate RPM @ 60 Hz
3,450 RPM
Nameplate Horsepower @ 60 Hz
2 1/2 hp

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Height
11 in
Body Dia.
5.6 in
Length Less Shaft
13 11/16 in
Overall Length
14 9/16 in
Shaft Dia. (In.)
5/8
Frame Size
48Y
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Wire Rope Length
14 9/16 in
Length
14 9/16 in

Description

Square Flange Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 11.2, Height 11 in, HP 2 1/2, Ins. Class B, Length Less Shaft 13 11/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
