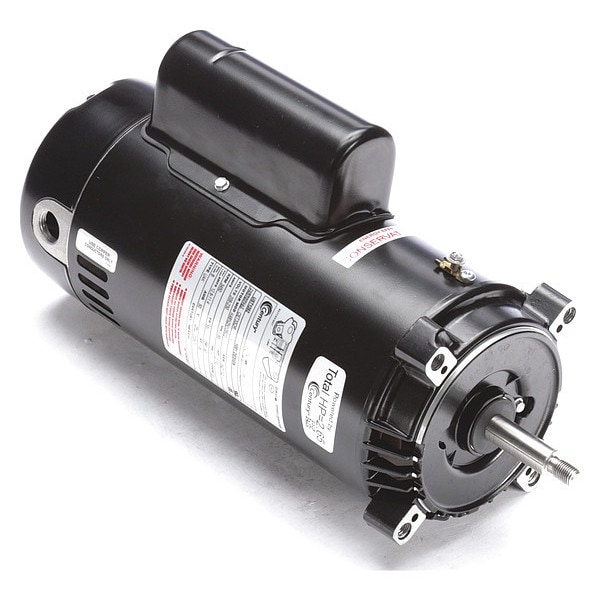

Pool Pump Motor, Capacitor-Start/Run, 2 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # UST1252
  • Zoro # G4483202
product price:
$
530.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2 1/2
Motor Service Factor
1.06
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UST1252
Zoro #
G4483202
UPC #
-
Country of Origin
Thailand

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Height
11 in
Bolt Circle Dia.
5 15/16 in
Overall Length
15 5/8 in
Body Dia.
5.7 in
Length Less Shaft
13 1/16 in
Shaft Dia. (In.)
5/8
Bolt Circle Diameter
5 15/16 in
Shaft Diameter
5/8 in
Body Diameter
5.7 in
Frame Size
56J
Wire Rope Length
15 5/8 in
Length
15 5/8 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2 1/2
Motor Service Factor
1.06
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCWSE
Voltage
208V AC to 230V AC
Phase
Single
Motor Mounting Type
Face
Full Load Amps
12.6-11.4 A
Ambient Temperature
50 Degrees C
Motor Sub Application
Pool and Spa Pump
Standards
CSA (LR43341), UL (E46412)
Finish
Black
Motor Efficiency Group
Energy Efficient
Shaft
Threaded 7/16-20 UNF-2A RH
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Shaft Material
Stainless Steel
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Bearings
Ball
Motor Flange Material
Aluminum
Ins. Class
B
Motor Application
Pump
Max. Ambient Temp.
50 Degrees C
Weight
35 lb
Motor Shaft Design
Threaded
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
No. of Speeds
1
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Conduit Box Position
F3
Application
Pump
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Full Load Current @ 60 Hz
12.6-11.4 A
Ambient Temperature - Maximum
50 Degrees C
Sub Application
Pool and Spa Pump
Bearing Type
Ball
Shaft Design
Threaded
Number of Speeds
1
Number of Wires
8
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.06
Frame Material
Steel
Mounting Position
Horizontal
Product Type
Pump Motor

Description

Pool and Spa Pump Motor, Body Dia. 5.7 in, Bolt Circle Dia. 5 15/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60 Hz, Full Load Amps 12.6-11.4, Height 11 in, HP 2 1/2, Ins. Class B, Length Less Shaft 13 1/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
