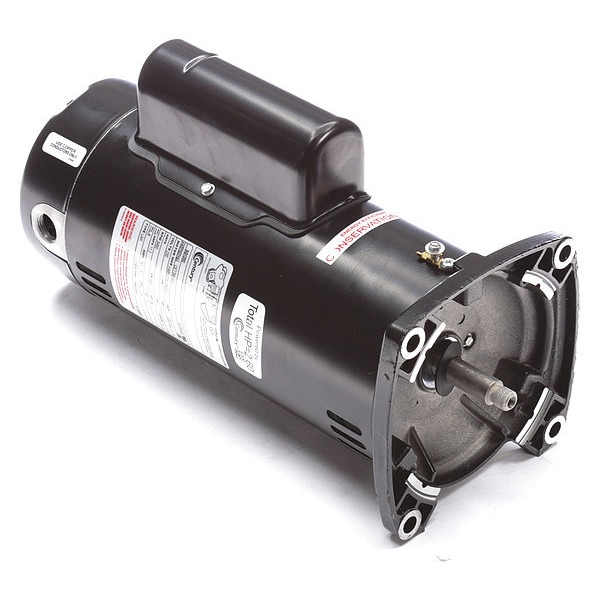

Pool Pump Motor, Capacitor-Start/Run, 2 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # SQ1202

  • Zoro # G1752606

product price:  $541.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2
Motor Service Factor
1.3
RPM Range
3,001-3,600
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SQ1202
Zoro #
G1752606
UPC #
-
Country of Origin
Thailand

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Height
5 5/8 in
Length Less Shaft
13 1/16 in
Overall Length
13 15/16 in
Body Dia.
5.6 in
Shaft Dia. (In.)
5/8
Body Diameter
5.6 in
Frame Size
48Y
Shaft Diameter
5/8 in

Details

Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2
Motor Service Factor
1.3
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
230V AC
Motor Mounting Type
Face
Full Load Amps
11.2 A
Hz
60 Hz
Shaft Material
Stainless Steel
Motor Efficiency Group
Energy Efficient
Motor Thermal Protection
Auto
Motor Application
Pump
Motor Sub Application
Pool and Spa Pump
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Design
Two Compartment
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Bearings
Ball
Standards
CSA, UL
Motor Shaft Design
Threaded
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Weight
34 lb
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Frame Material
Steel
Frequency
60 Hz
Product Type
Pump Motor
Sub Application
Pool and Spa Pump
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Number of Wires
8
Nameplate Service Factor @ 60 Hz
1.3
Ambient Temperature - Maximum
50 Degrees C
Full Load Current @ 60 Hz
11.2 A
Mounting Position
Horizontal
Shaft Design
Threaded
Application
Pump
Number of Speeds
1
Bearing Type
Ball

Description

Square Flange Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 11.2, Height 5 5/8 in, HP 2, Ins. Class B, Length Less Shaft 13 1/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
