Shop CENTURY

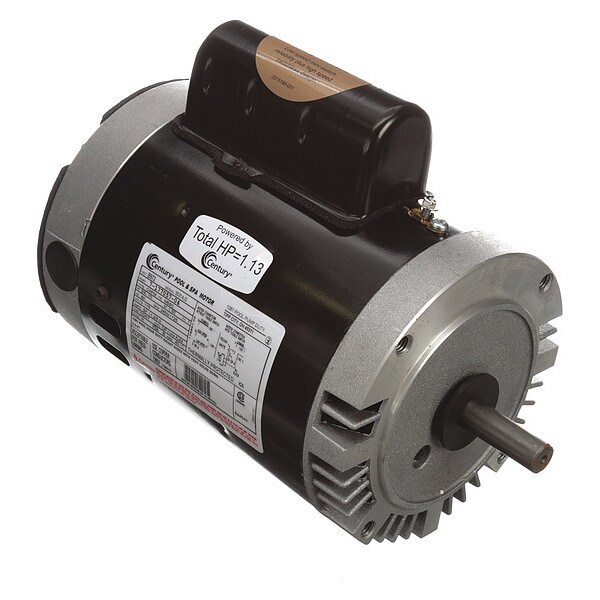

Pool Pump Motor, Permanent Split Capacitor, 1/10, 3/4 HP, 56C Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B972

  • Zoro # G2797925

product price:
$
491.99
/ea
Sold in multiples of 40 for $19,679.60
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
RPM Range
3,001-3,600
Motor Service Factor
1.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B972
Zoro #
G2797925
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
RPM Range
3,001-3,600
Motor Service Factor
1.5
Nameplate RPM
3,450/1,725
Frame
56C
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115V AC
Motor Mounting Type
Face
Full Load Amps
11.2/5.0 A
Motor Efficiency Group
Standard Efficient
Motor Thermal Protection
Auto
Hz
60 Hz
Shaft
Keyed
Motor Flange Material
Aluminum
Finish
Black
Motor Application
Pump
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ambient Temperature
40 Degrees C
Shaft Material
AISI 1215 Steel
Standards
CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
Ins. Class
B
Motor Sub Application
Pool and Spa Pump
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
No. of Speeds
2
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Weight
25 lb
Max. SF Amps
11.2
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Sub Application
Pool and Spa Pump
Number of Speeds
2
Service Factor Current
11.2 A
Full Load Current @ 60 Hz
11.2/5.0 A
Frame Material
Steel
Number of Wires
11
Nameplate Service Factor @ 60 Hz
1.5
Mounting Position
Horizontal
Bearing Type
Ball
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof

Description

Pool and Spa Pump Motor, Body Dia. 6.5 in, Duty Cycle Continuous, Finish Black, Frame 56C, Hz 60 Hz, Full Load Amps 11.2/5.0, Height 11 in, HP 1/10, 3/4, Ins. Class B, Length Less Shaft 9 3/4 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 11.2, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
