Shop CENTURY

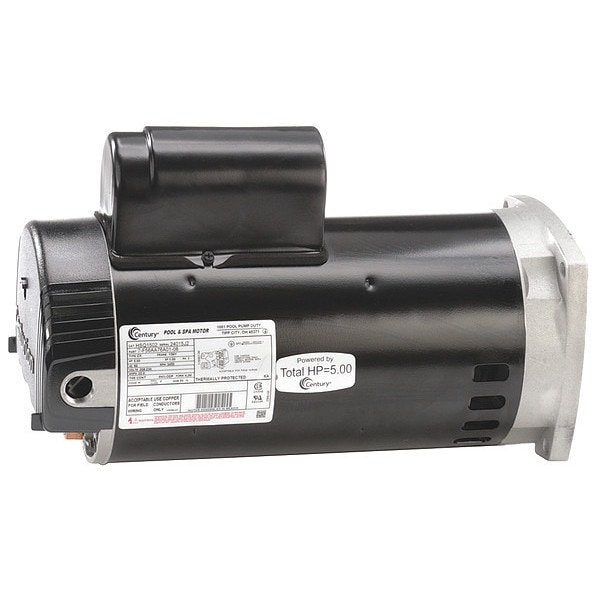

Pool Pump Motor, Permanent Split Capacitor, 5 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # HSQ1502

  • Zoro # G8651280

product price:
$
769.99
/ea
Sold in multiples of 2 for $1,539.98
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
5
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HSQ1502
Zoro #
G8651280
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
5
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
208-230V AC
Full Load Amps
22 A
Motor Mounting Type
Face
Finish
Unfinished
Motor Application
Pump
Ambient Temperature
50 Degrees C
Motor Sub Application
Pool and Spa Pump
Shaft
Threaded
Motor Bearings
Ball
Motor Thermal Protection
Auto
Hz
60 Hz
Shaft Material
Stainless Steel
Max. Ambient Temp.
50 Degrees C
Motor Flange Material
Aluminum
Ins. Class
F
Standards
CSA, UL
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Usable @ 200V
Not Usable at 200V
Replacement For
Mfr. No. SP3240Z1ME
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Weight
46 lb
No. of Speeds
1
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Motor Shaft Design
Threaded
Conduit Box Position
F3
Product Type
Pump Motor
Ambient Temperature - Maximum
50 Degrees C
Mounting Position
Horizontal
Full Load Current @ 60 Hz
22.0 A
Sub Application
Pool and Spa Pump
Bearing Type
Ball
Shaft Design
Threaded
Application
Pump
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Frame Finish
Unfinished
Nameplate Service Factor @ 60 Hz
1
Number of Wires
8
Number of Speeds
1
Frequency
60 Hz
Insulation Class
F

Description

Pool and Spa Pump Motor, Bolt Circle Dia. 7 3/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Unfinished, Frame 56Y, Hz 60 Hz, Full Load Amps 22.0, Height 6 1/2 in, HP 5, Ins. Class F, Length Less Shaft 14 3/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
