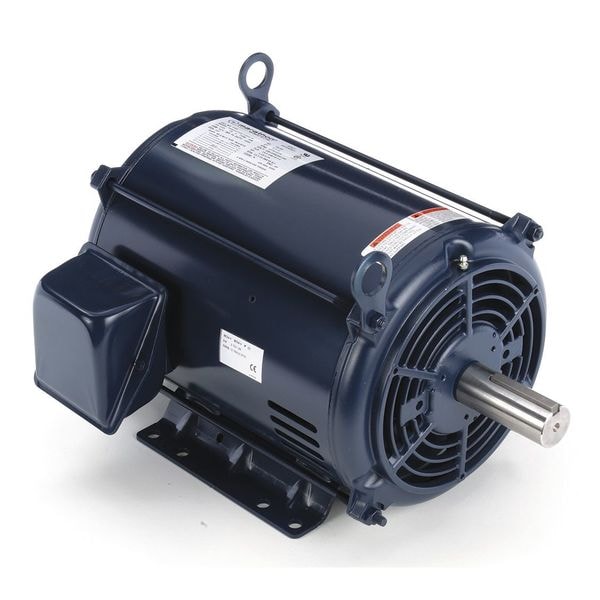

3-Phase Belt Drive Motor, 2, 5 HP, 215T Frame, 200-230V AC Voltage, 1,770/1,175 Nameplate RPM

  • Mfr # 215TTDW7204
  • Zoro # G5684786
product price:
$
1,597.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
2, 5
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTDW7204
Zoro #
G5684786
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 3/8 in
Overall Length
17 5/16 in
Shaft Length
3 1/2 in
Length Less Shaft
13 13/16 in
Shaft Diameter
1 3/8 in
Frame Size
215T
Body Diameter
9.5 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
2, 5
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,770/1,175
Voltage
200V AC to 230V AC
Frame
215T
Motor Mounting Type
Rigid Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Max. Ambient Temp.
104 Degrees F
Hz
60 Hz
Full Load Amps
14.5-14,7.8-7.4 A
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Duty
Continuous
Motor Frame Material
Steel
Motor Bearings
Ball
Standards
CSA (LR2025), UL (E49747)
Frame Material
Steel
Ins. Class
F
Nominal Efficiency
85.5 %
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Weight
116 lb
Usable @ 208V
Yes
Usable @ 200V
Yes
Finish
Blue Epoxy
Full Load Current @ 60 Hz
14.5-14 A
Product Type
Fan and Blower Motor
Bearing Type
Ball
Shaft Design
Keyed
Insulation Class
F
Application
Fan/Blower
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Drive Type
Belt Drive

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp, 5 hp HP, Nameplate RPM 1,770/1,175 RPM, No. of Speeds 2, Voltage 200-230V AC, 14.5-14 A Full Load Amps, 215T Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
