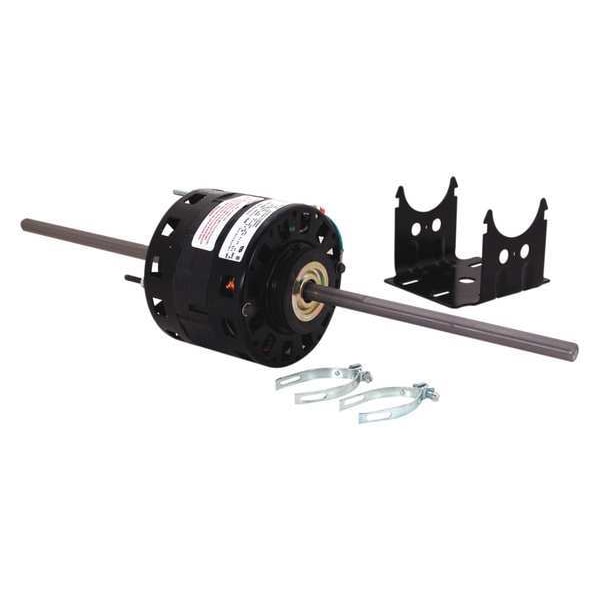

Century Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM DCL4423 - main
Shop CENTURY

Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM

  • Mfr # DCL4423

  • Zoro # G1096356

product price:  $205.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
HP
1/6
RPM Range
1,501-1,600
No. of Speeds
4
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCL4423
Zoro #
G1096356
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Bolt Circle Dia.
4 7/16 in
Body Dia.
5 in
Resilient Ring Dia.
2 1/2 in
Stud Size
#10-32
Shaft Length
8 1/2 in
Length Less Shaft
4 9/16 in
Lead Length
30 in
Overall Length
20 15/16 in

Details

Motor Design
Shaded Pole
HP
1/6
RPM Range
1,501-1,600
No. of Speeds
4
Voltage
115V AC
Motor Shaft Rotation
CCWLE
Frame
42Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Ring
Motor Service Factor
1
Ring to Ring Center
4 9/16 in
Full Load Amps
4 A
Motor Sub Application
Fan Coil, Room Air Conditioner Motor
Item
Room Air Conditioner Motor
Hz
60 Hz
Nameplate RPM
1,550 RPM
Motor Bearings
Sleeve
Ins. Class
B
Capacitor Required
No
Mounting Stud Pattern
3-1/8 in x 3-1/8 in
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
1
Motor Shaft Design
Flat
Motor Application
HVAC/R
Number of Shafts
2
Usable @ 200V
No
Usable @ 208V
No
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Duty Cycle
Continuous
Weight
12 lb
Number of Speeds
4
Mounting
Cradle Base
Application
Room Air Conditioners, evaporative cooloers, remote fan coils, and other shaft mounted fan and blower applications

Description

Room Air Conditioner Motor, Single Phase, Motor Design Shaded Pole, 1/6 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 4, Voltage 115V AC, 4.0 A Full Load Amps, 42Y Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
