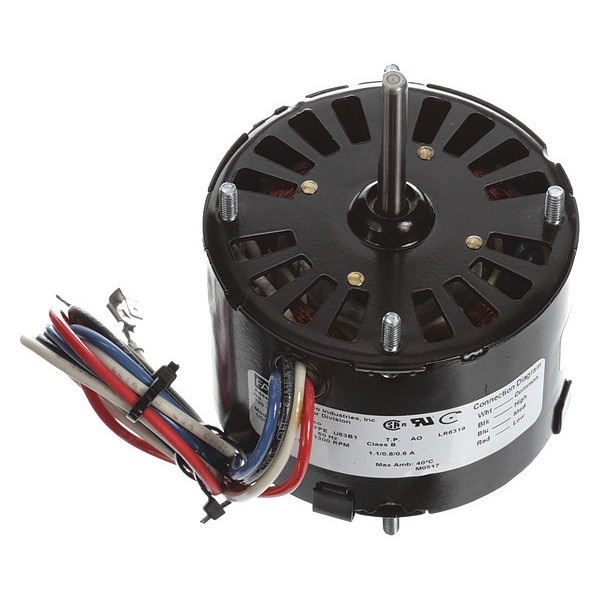

Fasco Motor, 1/50-1/65-1/80 HP, 120V, CW D1134 - main

Motor, 1/50-1/65-1/80 HP, 120V, CW

  • Mfr # D1134

  • Zoro # G6096526

product price:  $118.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Nameplate RPM
1,300
Motor Enclosure Design
Open Air-Over
Number of Speeds
3
HP
1/50, 1/65, 1/30
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D1134
Zoro #
G6096526
UPC #
663001023371
Country of Origin
Mexico

Dimensions

Shaft Length
1 3/4 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Length Less Shaft
2 13/16 in
Lead Length
15 1/2 in
Overall Length
4 9/16 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32
Bolt Circle Diameter
2 7/8 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Frame Size
3.3

Details

Voltage
120V AC
Nameplate RPM
1,300
Motor Enclosure Design
Open Air-Over
Number of Speeds
3
HP
1/50, 1/65, 1/30
RPM Range
1,201-1,300
Standards
CSA Certified, UL Recognized
Item
OEM Replacement Motor
Full Load Amps
1.1/0.80/0.60 A
Mounting Stud Location
4/Both Ends
Application
HVAC/R
Ins. Class
B
Hz
60 Hz
Phase
Single
Motor Sub Application
OEM Replacement
Max. Ambient Temp.
40 Degrees C
Mounting Pattern
2-7/8 x 2-7/8
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design
Flat
Motor Mounting Type
Ring/Stud
Number of Shafts
1
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Duty
Continuous
No. of Speeds
3
Motor Service Factor
1
Motor Bearings
Sleeve
Motor Application
HVAC/R
Motor Design
Shaded Pole
Motor Shaft Rotation
CWSE
Frame
3.3
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
2 lb
Mounting Holes
(8) #8-32
Motor Frame Material
Steel
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Motor Mounting Position
All Angle
Mounting
Stud
Frequency
60 Hz
Full Load Current @ 60 Hz
1.1/0.80/0.60 A
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Product Type
OEM Replacement Motor
Sub Application
General Purpose
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Wattage
10 W
Drive Type
Direct Drive

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp, 1/50 hp, 1/65 hp HP, Nameplate RPM 1,300 RPM, No. of Speeds 3, Voltage 120V AC, 1.1/0.80/0.60 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
