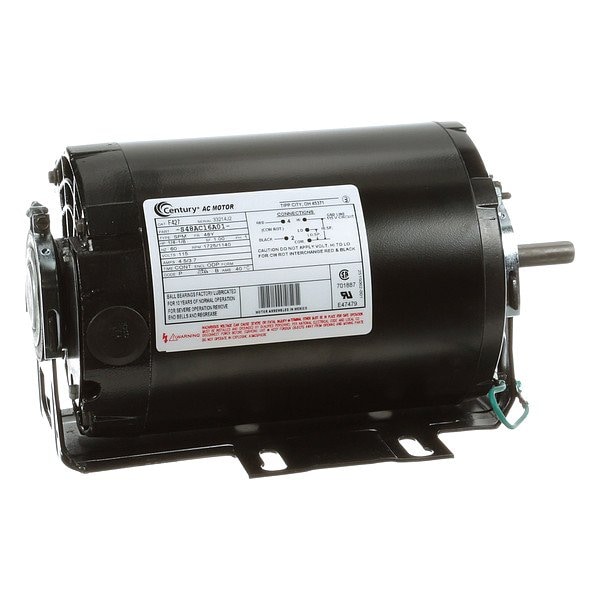

Split-Phase 1/4 hp, 1/8 hp HP, 48Y Frame, 115V AC Voltage, 1,725/1,140 RPM Nameplate RPM
Mfr # F427
Zoro # G612192008
product price:Â $289.99
/ea
Free Shipping & Returns
Key Features
HP
1/4 hp, 1/8 hp
Shaft Length
1 1/2 in
Full Load Amps
4.5/3.7 A
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
F427
Zoro #
G612192008
UPC #
786674068071
Country of Origin
Mexico
Dimensions
Shaft Length
1 1/2 in
Shaft Dia.
1/2 in
Length Less Shaft
9 5/16 in
Overall Length
10 13/16 in
Description
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp, 1/8 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 4.5/3.7 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
