Shop CENTURY

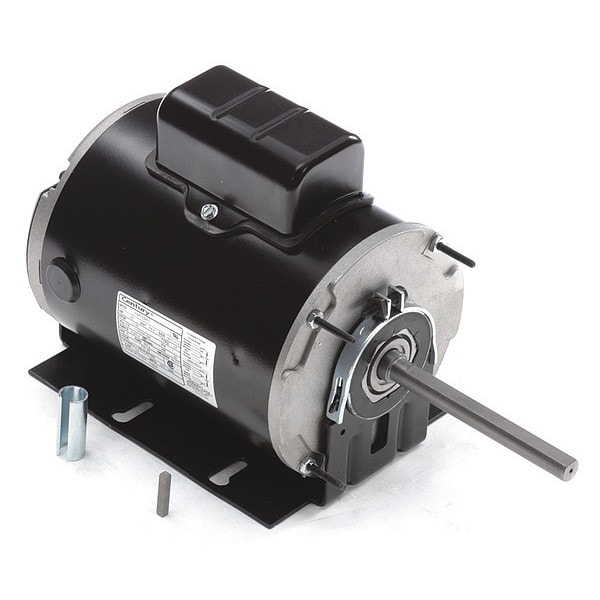

Unit Heater Motor, 1/2 hp

  • Mfr # 733A
  • Zoro # G3032671
product price:
$
405.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/2
Nameplate RPM
1,140
Voltage
115V AC, 208V AC to 230V AC
Frame
48Y
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
733A
Zoro #
G3032671
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2 in
Ring Dia.
2 1/4 in
Length Less Shaft
8 1/4 in
Body Dia.
5 5/8 in
Overall Length
12 3/4 in
Shaft Length
5 1/32 in
Stud Size
8-32
Resilient Ring Dia.
2 1/4 in
Lead Length
5 1/2 in
Resilient Ring Diameter
2 1/4 in
Body Diameter
5.6 in
Frame Size
48Y
Mounting Stud Thread Size
#10-32
Shaft Diameter
1/2 in
Wire Rope Length
12 3/4 in
Length
12 3/4 in

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/2
Nameplate RPM
1,140
Voltage
115V AC, 208V AC to 230V AC
Frame
48Y
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Cradle Base
RPM Range
1,101-1,200
Motor Application
HVAC/R
Ins. Class
B
Duty
Continuous
Motor Sub Application
Unit Heater
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Mounting Stud Pattern
3 5/8 in x 3 5/8 in SE
No. of Speeds
1
Hz
60 Hz
Full Load Amps
5.6, 2.8 A
Motor Bearings
Ball
Motor Thermal Protection
Auto
Phase
Single
Max. Ambient Temp.
60 Degrees C
Motor Service Factor
1
Application
Unit Heater
Ring to Ring Center
7 7/8 in
Includes
Resilient Base
Standards
CSA Certified, UL Recognized
Number of Shafts
1
Usable @ 208V
Usable at 208V
Motor Shaft Design
Flat
Capacitor Required
Capacitor Included
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Weight
19 lb
Motor Mounting Position
All Angle
Motor Frame Material
Steel
Mounting Holes
(4) #10-32
Mounting
Cradle Base
Number of Speeds
1
Ambient Temperature
60 Degrees C
Frequency
60 Hz
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Sub Application
Unit Heater
Product Type
Unit Heater Motor
Shaft Design
Flat
Bearing Type
Ball
Full Load Current @ 60 Hz
5.6, 2.8 A
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Drive Type
Direct Drive
Wattage
370 W
Ambient Temperature - Maximum
60 Degrees C

Description

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/208-230V AC, 5.6, 2.8 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
