Shop CHICAGO-LATROBE

26PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TN TiN HSS A - Z

  • Mfr # 41801

  • Zoro # G3619804

product price:
$
272.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
26
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
41801
Zoro #
G3619804
UPC #
662355418017
Country of Origin
United States

Dimensions

Sizes Included
A-Z
Drill Bit Size
A to Z
Drill Bit Dimension Type
Letter
Depth:Dia. Ratio
4xD
Shank Dia.
117/500 in
Depth x Dia. Ratio
4xD
Drill Length Class
Jobber-Length
Smallest Drill Bit Size
A
Drill Bit Sizes Included
A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
Largest Drill Bit Size
Z
Overall Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Wire Rope Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
26
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
P3 Split Point
Drill Bit Grouping
Drill Bit Set
List Number
150ASP-TN
Standards
NAS 907 Type B
Material - Machining
High Speed Steel
Measurement System
Letter
Finish - Machining
TiN
Material Grade - Machining
Heavy Duty
Drill Bit Point Type
Split Point
Number of Drill Bits
26
Primary Material Application
Cast Iron, Stainless Steel, Steel
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Aircraft Drill
Yes
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Spiral Direction
Right Hand
Primary Material Application ISO Code
K, M, P
Number of Flutes
2
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

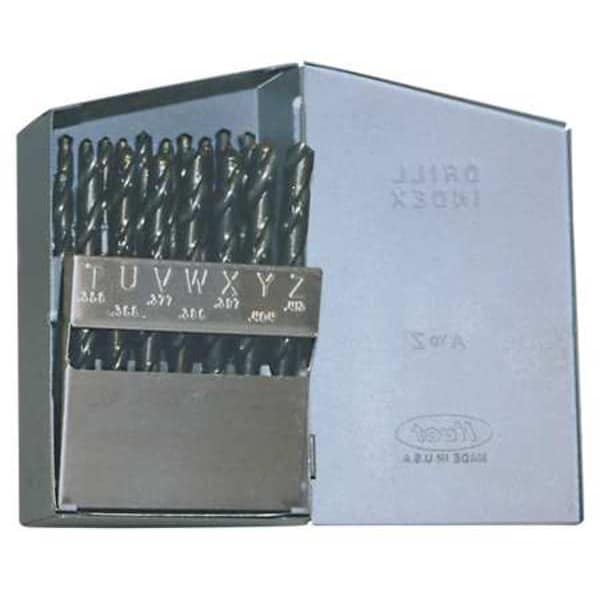

The CHICAGO-LATROBE 41801 is a jobber-length drill bit set consisting of 26 high speed steel bits sized A through Z. The bits have a P3 split point and a 135° point angle and are intended for drilling cast iron, stainless steel, and steel materials. This set is identified as NAS 907 Type B and includes a metal drill index for bit storage and organization. The drill bits have a right-hand spiral direction and straight shanks with a diameter of 117/500 inches. Overall lengths of the bits are 3 7/8 inches to 5 1/4 inches. Key Features:

  • Drill Sizes: Letter sizes A to Z included
  • Material: Heavy duty high speed steel with TiN finish
  • Point Type: P3 split point with 135° angle
  • Flutes: 2-flute spiral with helix angles between 21° and 34°
  • Shank: Straight type with diameter of 117/500 inches
  • Lengths: Jobber-length ranging from 3 7/8 in to 5 1/4 in overall
  • Standard: NAS 907 Type B.
  • Drill Bit Case: Includes a metal index for bit storage and organization
  • Cutting Direction: Right hand spiral
