29PC 118 Degree General Purpose Screw Machine Lngth Drill Set Chicago-Latrobe 157 Bright HSS 1/16-1/2x1/64
Mfr # 69900
Zoro # G3731506
Key Features
Specifications
Product Information
- MFR #
- 69900
- Zoro #
- G3731506
- UPC #
- 662355699003
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Depth:Dia. Ratio
- 4xD
- Depth x Dia. Ratio
- 4xD
- Smallest Drill Bit Size
- 1/16 in
- Largest Drill Bit Size
- 1/2 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Drill Length Class
- Screw-Machine Length
Description

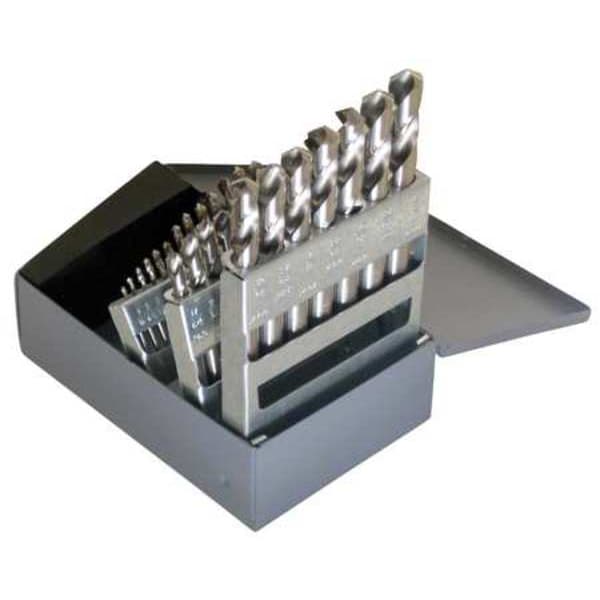

The CHICAGO-LATROBE 69900 Screw Machine Drill Bit Set includes 29 high-speed steel drill bits sized from 1/16 inch to 1/2 inch, covering fractional increments by 64ths. These drill bits have a straight shank and a general-purpose point type, and are designed with 2-flute spiral geometry, intended for drilling materials consistent with general-purpose high-speed steel (HSS) applications; refer to the material/operation guidance for recommended cutting speeds and feeds. The bits are bright, uncoated, and have a screw-machine length classification with a 118-degree conventional point angle. The set comes housed in a metal drill index for organized storage and quick access. These bits are right-hand cutting and do not have through-coolant capability; use external coolant as appropriate for the workpiece and operating conditions.
Key Features:
- Includes 29 drill bits sized 1/16" to 1/2" in fractional increments.
- Constructed from general-purpose high-speed steel.
- Features straight shanks and 2-flute spiral design with helix angles between 21° and 34°.
- Screw-machine length classification with conventional 118° point angle.
- Bright, uncoated finish.
- Right-hand cutting direction.
- Non-coolant-through design.
- Supplied in a metal drill index case for storage and organization.
