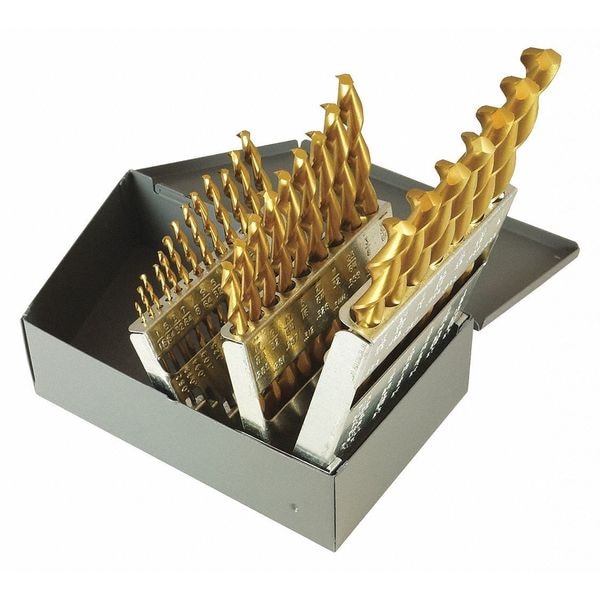

29PC 135 Degree Deep Hole Parabolic Jobber Length Drill Set Chicago-Latrobe 150DH-TN TiN HSS 1/16-1/2x1/64

  • Mfr # 57734

  • Zoro # G2828329

product price:  $368.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
57734
Zoro #
G2828329
UPC #
662355577349
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 1/2 in by 64ths
Shank Dia.
1/16 in
Drill Bit Dimension Type
Fractional Inch
Sizes Included
1/16",5/64",3/32",7/64",1/8",9/64",5/32",11/64",3/16",13/64",7/32",15/64",1/4",17/64",9/32",19/64",5/16",21/64",11/32",23/64",3/8",25/64",13/32",27/64",7/16",29/64",15/32",31/64",1/2"
Depth x Dia. Ratio
8xD
Diameter
0.078125
Shank Size
0.0781
Shank Length
1
Depth:Dia. Ratio
8xD
Drill Length Class
Jobber-Length
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
Smallest Drill Bit Size
1/16 in
Largest Drill Bit Size
1/2 in
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Standards
ANSI
Point Type
Split
Drill Bit Grouping
Drill Bit Set
List Number
150DH-TN
Drill Style
Jobber Drill
Left/Right Hand
Right
Flute Type
Parabolic
Measurement System
Fractional Inch
Shank Type
Straight
Aircraft Drill
No
Number of Drill Bits
29
Material - Machining
High Speed Steel
Primary Material Application
Aluminum, Stainless Steel, Steel
Finish - Machining
TiN
Drill Bit Point Type
Split Point
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Drill Bit Case Type
Metal Index
Spiral Direction
Right Hand
Primary Material Application ISO Code
M, N, P
Number of Flutes
2
Material Grade - Machining
Heavy Duty

Description

The CHICAGO-LATROBE 57734 is a jobber length drill bit set consisting of 29 pieces with sizes ranging from 1/16 inch to 1/2 inch in fractional increments. Made of high speed steel (HSS) with a titanium nitride (TiN) finish, these drill bits are intended for use on aluminum, stainless steel, and steel (within the bit size and speed/feed ranges appropriate for the workpiece). Each bit features a split point design with a 135-degree angle and a right-hand spiral direction, intended for general drilling applications using fractional inch sizes within the set’s range.

Key Features:

  • Includes 29 drill bits in sizes from 1/16" to 1/2" in fractional increments.
  • Made of high speed steel (HSS) with a titanium nitride (TiN) finish for durability and performance.
  • Features a split point with a 135° angle.
  • Right-hand spiral direction designed for conventional drilling.
  • Features a two-flute parabolic geometry.
  • Straight shanks with a diameter of approximately 0.0781" and a shank length of 1".
  • Includes a metal drill index for organized storage.
  • Complies with applicable ANSI standards: [specify the ANSI standard reference, if available].
