Shop CHICAGO PNEUMATIC

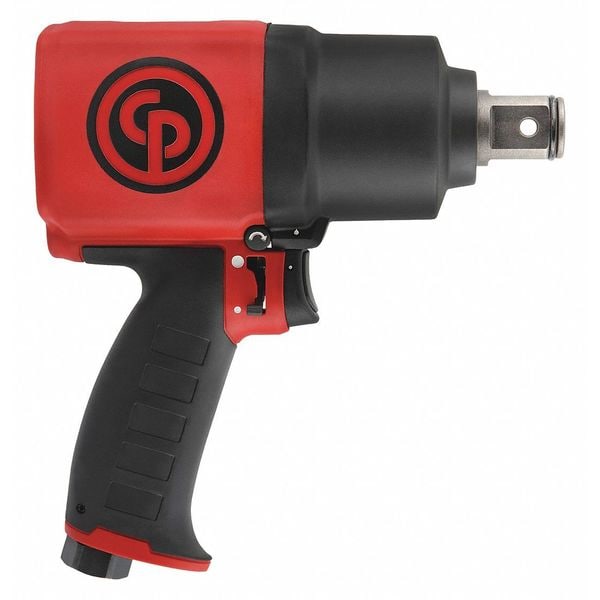

Air Impact Wrench, 1" Square Drive, Pistol

  • Mfr # CP7779
  • Zoro # G1205274
product price:
$
773.99
/ea
Free Shipping & Returns

Key Features

Free Speed
6,500 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol-Grip
Torque Range
300 to 1440 ft.-lb.
Body Style - Air Tools
Pistol
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP7779
Zoro #
G1205274
UPC #
015451779634
Country of Origin
Taiwan, Province of China

Dimensions

Anvil Length - Air Impacts
1.000"
Overall Length
8 1/8 in
Min. Hose Size
1/2 in
Air Inlet Size - Air Tools
3/8" NPT
Drive Size - Air Tools
1" Square
Drive Size
1 in
Air Inlet Connection Size
3/8 in
Hose Size - Minimum
1/2 in
Wire Rope Length
8 1/8 in
Length
8 1/8 in
Fits Chest Size
360 Degrees Swivel Air Inlet, One-Hand Power Adjustment, One-Hand Reverse System, Variable Speed Trigger

Details

Item
Air Impact Wrench
Free Speed
6,500 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol-Grip
Torque Range
300 to 1440 ft.-lb.
Body Style - Air Tools
Pistol
Handle Material
Composite
Blows per Minute - Air Tools
1200
Max. Torque
1440 ft.-lb.
Average CFM @ 15 Second Run Time
10.00
Item - Air Impact Wrenches
Air Impact Wrench
Required Pressure
90 psi
Duty Cycle - Air Tools
General Duty
Retainer Type - Air Impacts
Ring / Thru Hole
Housing Material
Composite
Features
360 Degrees Swivel Air Inlet, One-Hand Power Adjustment, One-Hand Reverse System, Variable Speed Trigger
Max. Bolt Capacity
1/2 in
Anvil Type - Air Impacts
Standard
Tool Weight
7.2 lb
CFM @ Full Load
40.2
Retainer Type
Friction Ring, Through Hole
Impacts per Minute
1,200
Impact Rated
Yes
Breakaway Torque
1,440 ft-lb
Air Pressure
90 psi
Tool Style
Compact
Drive Type
Standard
Exhaust Location
Bottom
Min. Air Pressure
90 psi
Fastening Torque
1,080 ft-lb
Power Source
Air-Powered
Max. Air Pressure
90 psi
Vibration Level
13 m/sq sec
Impact Sound Level
108 dB
Standards
EN ISO 11148-6:2013, ISO 15744, ISO-28927-2
Duty Rating
General Duty
Clutch Style
Twin Hammer
Number of Speed Settings
3
Built-In Light
No
Power to Weight Ratio
200 ft-lb/lb
Air Consumption
40 cfm
Drive Shape
Square
Frequency of Use
Maintenance to Light Production
Air Inlet Type
NPT
Air Pressure - Minimum
90 psi
Tool Life
Long Lasting
Air Pressure - Maximum
90 psi
Bolt Capacity - Maximum
1 in
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Impact Wrench, Power Source Air Powered, Air Consumption 40 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,440 ft-lb, Fastening Torque 1,080 ft-lb, Free Speed 6,500 RPM, Impact Rated Yes, Impact Sound Level 108 dB, Impacts per Minute 1,200, Number of Speed Settings 3, Power to Weight Ratio 200 ft-lb/lb, Max. Bolt Capacity 1/2 in, Drive Size 1 in Square
