Shop CHICAGO PNEUMATIC

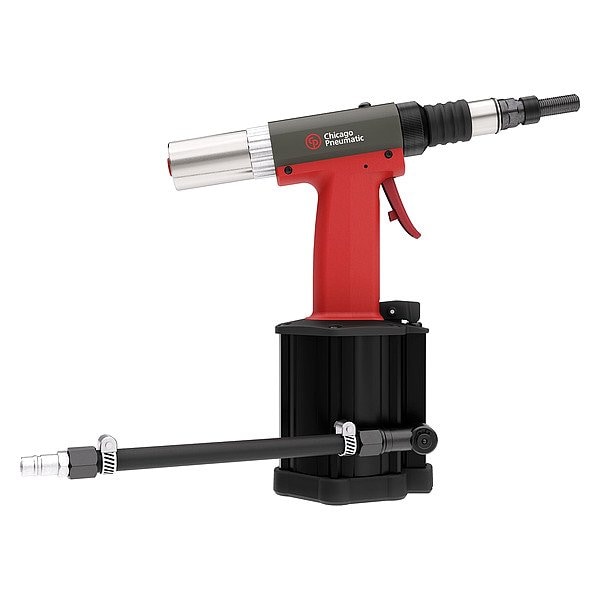

Air Nut Riveter, 1/4 in, NPT, Aluminum

  • Mfr # CP9888

  • Zoro # G810607496

original price:  $1,481.99 , new price: $1,259.99 , 14 percent off
new price:  $1,259.99
/ea
Free Shipping & Returns

Key Features

Overall Length
11 in
Tool Weight
4.85 lb
Stroke Length
7 mm
Pulling Force
24,000 N
Includes
(1) inlet hose, (1) Nosepiece 3.2mm, (1) Nosepiece 4.0mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP9888
Zoro #
G810607496
UPC #
015451796945
Country of Origin
China

Dimensions

Overall Length
11 in
Stroke Length
7 mm
Min. Hose Size
10 mm
For Rivet Nut Thread Size
M10, M11, M12, M3, M4, M5, M6, M7, M8, M9
Overall Width
11 in
Overall Height
4 1/2 in
For Helical Insert Size
N
Blind Rivet Diameter
12 mm
Air Inlet Connection Size
1/4 in
Hose Size - Minimum
10 mm

Details

Item
Air Nut Riveter
Tool Weight
4.85 lb
Pulling Force
24,000 N
Includes
(1) inlet hose, (1) Nosepiece 3.2mm, (1) Nosepiece 4.0mm
Air Inlet
1/4 in NPT
Standards
CE, EN ISO
Features
Comfortable and Safe with Low Vibration and Kickback, Flexible Air Connection with 360 degree Rotation Option, Powerful with High Setting Forces
Min. Air Pressure
90 psi
Exhaust Location
Side
Housing Material
Aluminum
Air Consumption
5.9 cfm
Max. Air Pressure
91 psi
Duty Rating
Industrial Duty
Power Source
Air-Powered
Rivet Type
Helical Insert
Includes Mandrel Collection
Yes
Air Pressure
90 psi
Air Inlet Type
NPT
Air Pressure - Minimum
90 psi
Material
Steel
Air Pressure - Maximum
91 psi
Flow per Stroke
5.9 cfm
Power Source - TS Only
Air-Powered

Description

Air Nut Riveter, Air-Powered, Air Consumption 5.9 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 91 psi, Min. Air Pressure 90 psi, Min. Hose Size 10 mm, Exhaust Location Side, Duty Rating Industrial Duty, Tool Brand Chicago Pneumatic, For Rivet Nut Thread Size M10, M11, M12, M3, M4, M5, M6, M7, M8, M9, For Helical Insert Size N, Pulling Force 24,000 N, Rivet Type Helical Insert, Stroke Length 7 mm, Nose Dia. Not Applicable, Nose Length Not Applicable, Overall Length 11 in
