  9. Right Angle Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Medium Duty, 17,000 RPM
Shop All Air Grinders
Chicago Pneumatic

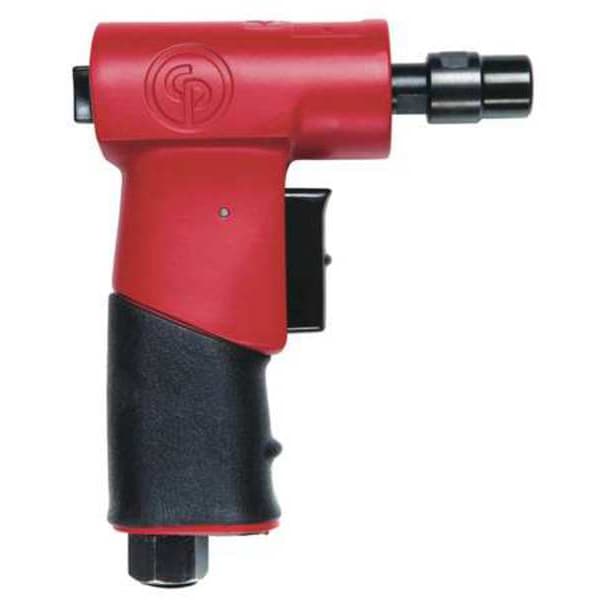

Right Angle Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Medium Duty, 17,000 RPM

product price: $97.49
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet 1/4 in NPT Female
  • Collet 1/4 in
  • Duty Medium Duty
  • Free Speed 17,000 RPM
  • Grinder Type Right Angle
See all product information

Product Information

Dimensions

Min. Hose Size 3/8 in
Overall Length 4 3/4 in
Air Inlet Connection Size 1/4 in
Collet Size 1/4 in

Details

Air Inlet 1/4 in NPT Female
Item Die Grinder
Collet 1/4 in
Duty Medium Duty
Free Speed 17,000 RPM
Grinder Type Right Angle
Handle Material Rubber
HP 0.2 hp
Includes (2) Spanner Wrenches
Required Pressure 90 psi
Throttle Trigger
Variable Speed Yes
Bearing Type Ball
Exhaust Rear
CFM @ Full Load 16.0
Grinder Orientation Straight
Average CFM @ 15 Second Run Time 8.0
Tool Weight 1.5 lb
Features Operator Comfort and Control
Application General Maintenance Application
Standards ISO-28927-12
Air Inlet Type NPT
Horsepower 0.2 hp
Switch Type Trigger
Tool Style Right Angle
Air Consumption 16 cfm
Power Source Air Powered
Minimum Speed 17,000 RPM
Vibration Level 3 m/sq sec
Kit Contents (1) Bare Tool
Accessory Free Tool Change No
Exhaust Location Rear
Max. Speed 17,000 RPM
Switch Location Bottom
Series CP91 Series
Air Inlet Gender Female

Description

Die Grinder, Duty Medium Duty, Horsepower 0.2 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 17,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Right Angle, Kit Contents (1) Bare Tool, Includes (2) Spanner Wrenches, Switch Location Bottom, Power Source Air Powered
