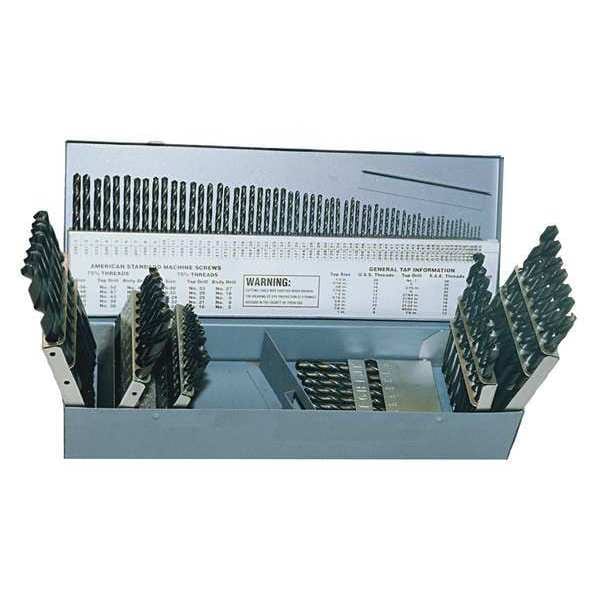

115PC 135 Deg HD Jobber Length Drill Set Cle-Line 1801 Oxide HSS RHS/RHC 1/16-1/2, A-Z, N1-No 60

Mfr # C21128
Zoro # G4958950

375.99

Free Shipping & Returns

Key Features

Number of Pieces

115

Cutting Direction

Right Hand

Drill Bit Point Angle

135 Degrees

Depth:Dia. Ratio

4xD

Drill Bit Grouping

Drill Bit Set

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Details

MFR #: C21128
Zoro #: G4958950
UPC #: 697334211280
Country of Origin: United States
Item: Jobber Length Drill Bit Set
Number of Pieces: 115
Cutting Direction: Right Hand
Drill Bit Point Angle: 135 Degrees
Drill Bit Grouping: Drill Bit Set
Standards: ASME B94.11M, DIN 338
List Number: 1801
Coolant Fed: Non-Coolant Through
Helix Angle: Variable
Flute Type: Spiral
Finish - Machining: Black Oxide
Series: 1801
Material - Machining: High Speed Steel
Measurement System: Fractional Inch, Letter, Wire
Spiral Direction: Right Hand
Drill Bit Point Type: Split Point
Shank Type - Machining: Straight
Number of Drill Bits: 115
Primary Material Application ISO Code: K, P
Primary Material Application: Cast Iron, Steel
Number of Flutes: 2
Thread Direction: Right Hand
Material Grade - Machining: Heavy Duty
Helix Angle - Maximum: 34 Degrees
Drill Bit Case Type: Metal Index
Helix Angle - Minimum: 21 Degrees

Description

The CLE-LINE C21128 is a jobber-length drill bit set composed of 115 pieces, intended for drilling cast iron and steel (ISO codes K, P). Made from heavy-duty high speed steel, it includes bits ranging in size from #60 (1/16 in) to #1 (1/2 in), covering fractional inch, letter, and wire measurement systems. Bits have a split point tip with a 135-degree point angle and include a black oxide finish. This set is suited for applications requiring precise drilling with a right-hand cutting direction and straight shanks, conforms to ASME B94.11M and DIN 338 standards. Requires external coolant; bits are not coolant-through.

Key Features:

Number of drill bits: 115 pieces with 2 flutes per bit
Drill bit size range: #60 to #1, including fractional inch, letter, and wire sizes
Overall length range: 1 5/8 in to 6 in, accommodating various drilling depths
Material: Heavy-duty high speed steel with black oxide finish
Point angle: 135 degrees with split point tip
Helix angle: Variable between 21 and 34 degrees with spiral flute design
Shank type: Straight
Cutting and thread direction: Right-hand
Drill bit tolerance: +0.0000 in / -0.0005 to -0.0010 in
Conforms to standards: ASME B94.11M and DIN 338
Primary material applications: Cast iron and steel (ISO codes K, P)

Dimensions

Depth:Dia. Ratio: 4xD
Depth x Dia. Ratio: 4xD
Drill Bit Size: #60 to #1, 1/16 in to 1/2 in by 64ths, A to Z
Drill Bit Dimension Type: Fractional Inch, Letter, Wire
Drill Diameter Tolerance: +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
Drill Length Class: Jobber-Length
Smallest Drill Bit Size: #60, 1/16 in, A
Drill Bit Sizes Included: #1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #4-1/2, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9, 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
Largest Drill Bit Size: #1, 1/2 in, Z
Overall Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Wire Rope Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
