8PC 1/2 Silver and Deming Reduced Shank Drill Set Cle-Line 1892 Steam Oxide HSS RHS/RHC 9/16-1IN

  • Mfr # C22761

  • Zoro # G4953728

product price:  $215.99
/ea
Free Shipping & Returns

Key Features

Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Includes
Metal Index Case
Depth:Dia. Ratio
4xD
List Number
1892
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C22761
Zoro #
G4953728
UPC #
697334227618
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Shank Dia.
1/2 in
Drill Bit Size
9/16 in to 1 in by 16ths
Drill Bit Dimension Type
Fractional Inch
Flute Length
3 1/8 in
Overall Length
6 in
Depth x Dia. Ratio
4xD
Smallest Drill Bit Size
9/16 in
Largest Drill Bit Size
1 in
Drill Bit Sizes Included
9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, 15/16 in, 1 in
Wire Rope Length
6 in

Details

Item
Reduced Shank Drill Bit Set
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Includes
Metal Index Case
List Number
1892
Number of Flutes
2
Flute Type
Spiral
Application
For Alloy And Carbon Steel, Cast Iron And Wood
Coolant Fed
Non-Coolant Through
Primary Material Application
All Materials
Material - Machining
High Speed Steel
Drill Bit Point Type
Conventional Point
Shank Type - Machining
Straight with Three Flats
Material Grade - Machining
General Purpose
Finish - Machining
Black Oxide
Measurement System
Fractional Inch
Standards
Not Rated
Number of Drill Bits
8
Drill Bit Case Type
Metal Index
Helix Angle - Minimum
30 Degrees
Helix Angle - Maximum
34 Degrees

Description

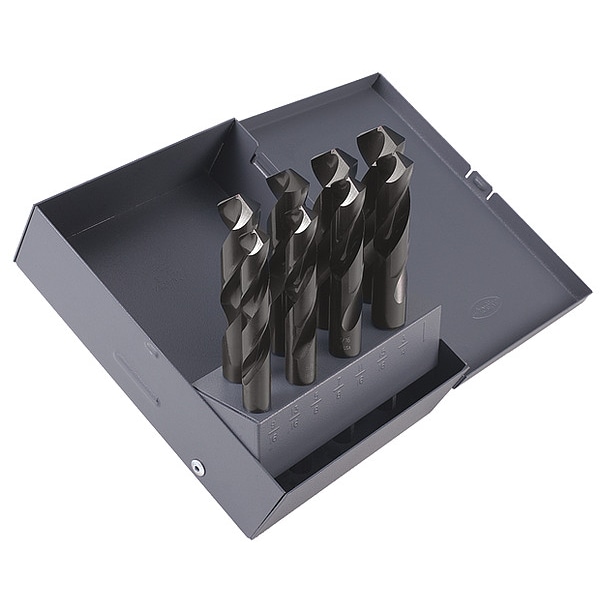

The CLE-LINE C22761 is a reduced shank drill bit set intended for use in drilling applications with the included materials/grades consistent with high speed steel drill bits. The set includes eight fractional inch drill bits ranging from 9/16 inch to 1 inch in size, suitable for use with drills featuring a 1/2 inch shank diameter. The bits are constructed from high speed steel with a black oxide finish. Each bit features a straight shank with three flats for chuck engagement. The set is housed in a metal index case.

Key Features:

  • Includes 8 drill bits sized from 9/16 in to 1 in by 16ths
  • Constructed from high speed steel (HSS)
  • Black oxide finish
  • Straight shank with three flats, 1/2 in diameter
  • Two-flute spiral design with a 30° to 34° helix angle
  • Conventional 118° point angle for drilling
  • Overall length of 6 in with flute length of 3 1/8 in
  • Metal index case included
  • Measurement system: fractional inch
  • Primary material application: drilling applications consistent with high speed steel drill bits (material compatibility varies by workpiece and drilling conditions)
