Shop DAYTON

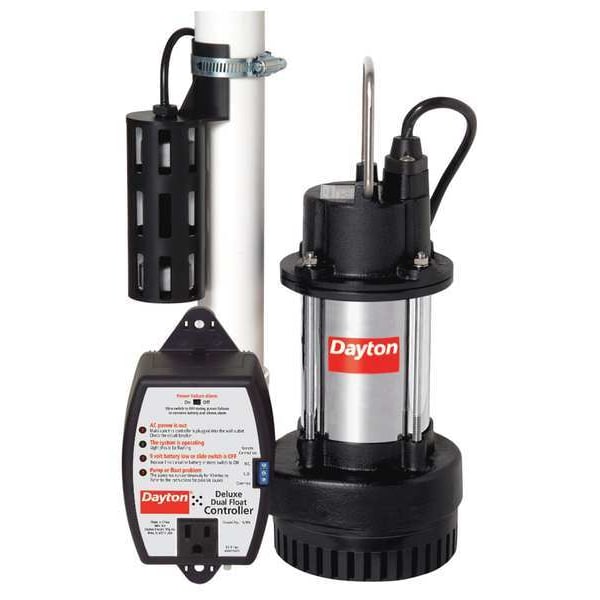

1/2 HP 2" F Submersible Sump Pump 120V AC Dual Float

  • Mfr # 1APP2

  • Zoro # G1934773

product price:  $430.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Discharge NPT
2" F
Housing Material
Stainless steel
HP
1/2
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1APP2
Zoro #
G1934773
UPC #
190735131589
Country of Origin
Unknown

Dimensions

Cord Length
20 ft
Cord Length - Pumps
13 ft.
Height
13-3/8"
Max. Dia. Solids
7/8"
Min. Sump Pit Dia.
8 in
Max. Diameter Solids
7/8 in
Diameter
8-1/2"
Manufacturers Warranty Length
1 yr
Discharge Dia.
2 in
Overall Height
13 3/8 in
Body Dia.
8 1/2 in
Solids Diameter - Maximum
1/4 in
Body Diameter
8 1/2 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
18 in

Details

Discharge NPT
2" F
Housing Material
Stainless steel
HP
1/2
Hz
60 Hz
Impeller Material
Polycarbonate
Includes
Monitoring Controller
Max. Head
33 ft
Max. Temp.
104 Degrees F
Motor RPM
3600
Motor Type
PSC
Shaft Seal
(2) Carbon/Ceramic, (1) Buna N
Voltage
120V AC
Phase
Single
GPM of Water @ 15 Ft. of Head
57
GPM of Water @ 20 Ft. of Head
45
NEC Cord Designation
SJTW
GPM of Water @ 5 Ft. of Head
70
Alarm Duration - Pumps
Continuous
GPM of Water @ 10 Ft. of Head
65
Duty
Continuous
Pump Body Material
Stainless Steel
Alarm Included
Yes
Shaft Seal Material - Pumps
Buna-N, Carbon, Ceramic
Mechanical Seal
CRB/CMC
Item - Sump Pumps
Submersible Sump Pump
Max. Head - Pumps
33 ft.
Amps
4.3 A
Item
Submersible Sump Pump
Alarm Duration
Continuous
Voltage - Pumps
120VAC
Switch Type - Pumps
Dual Float
Gauge/Conductor
16/3
Alarm Output - Pumps
Audible, Phone System, Visual, WiFi
Alarm
yes
Amps - Pumps
4.30
Alarm Output
Audible, Visual, Remote Terminals for optional Phone System and WiFi
Impeller Material - Pumps
Polycarbonate
Bearing Type
Ball
Base Material
Cast Iron
Switch Type
Dual Float
Thermal Protection
Auto
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 30 Ft. of Head
9
Application
Dewatering
Duty Cycle
Continuous
Discharge Gender
Female
Switch Actuation
Dual Micro-Reed Float
RPM
3,600 RPM
Flow Rate @ 15 Ft. of Head
57 gpm
Body Material
Stainless Steel
Flow Rate @ 10 Ft. of Head
65 gpm
Rated Voltage
120V AC
Discharge
2 in FNPT
Flow Rate @ 5 Ft. of Head
70 gpm
Discharge Standard
NPT
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
45 gpm
Connectivity
Auxiliary Contacts
For Industry
Commercial, Residential
Horsepower
1/2 hp
Standards
UL/CSA
Includes Alarm
Alarm Included
Rotation Speed - Maximum
3,450 RPM
Installation
Submersible
Controls Included
Controller
Requires Control Panel
No Control Panel Required
Frequency
60 Hz
Power Source
Corded Electric
Motor Housing Material
Stainless Steel
Feet of Head - Maximum
33 ft
For Media Type
Clear Water
Operation
Automatic
Current
4.3 A
Volute Material
Cast Iron
Series
Pro Series
Flow Rate @ 10 ft of Head
65 gpm
Impeller Design
Open
Flow Rate @ 30 ft of Head
16 gpm
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Liquid Temperature - Maximum
104 Degrees F
Shaft Seal Type
Double Mechanical
Hazardous Location Class
Not Rated
Control Panel Functions
Adjustable Run Time, Scheduled Pump Cycling
Power Source - TS Only
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 120V AC, Hz 60 Hz, Amps 4.3 A, Switch Actuation Dual Micro-Reed Float, Switch Electrical Connection Piggyback, Off Point Not Applicable, On Point Not Applicable, Body Material Stainless Steel, Impeller Material Polycarbonate, Shaft Seal Material - Pumps Buna-N, Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 70 gpm, Flow Rate @ 10 Ft. of Head 65 gpm, Flow Rate @ 15 Ft. of Head 57 gpm, Flow Rate @ 20 Ft. of Head 45 gpm, Max. Head 33 ft
