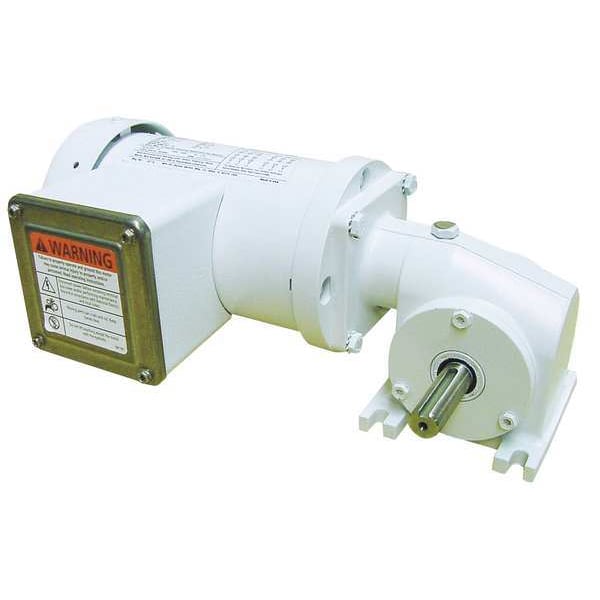

AC Gearmotor, 23 in-lb Max. Torque, 340 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
Mfr # M1145153.00
Zoro # G2224223
product price:Â $1,395.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
23 in-lb
Gearmotor Shaft Type
Single Right
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
M1145153.00
Zoro #
G2224223
UPC #
190735342657
Country of Origin
Mexico
Dimensions
Length Less Shaft
13.25 in
Keyway Size Type
3/16 sq in x 1 in
Shaft Length (Dimension V)
1.75 in
Shaft Dia. (Dimension U)
5/8 in
Keyway Size
3/16" Square x 1"
Height (Dimension O)
1.67 in
Dimension X
4-1/2 in
Overall Length
3 in
Overall Width
4 in
Output Shaft Diameter
5/8 in
Overall Height
9.64 in
Output Shaft Length
1 13/16 in
Output Shaft Height
42.4 mm
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 340 RPM, Maximum Torque 23 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Output Shaft Height 42.4 mm, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115/230V AC, Gear Ratio 5:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Includes Capacitor Capacitor Included, Motor Insulation Class H
