Shop FASCO

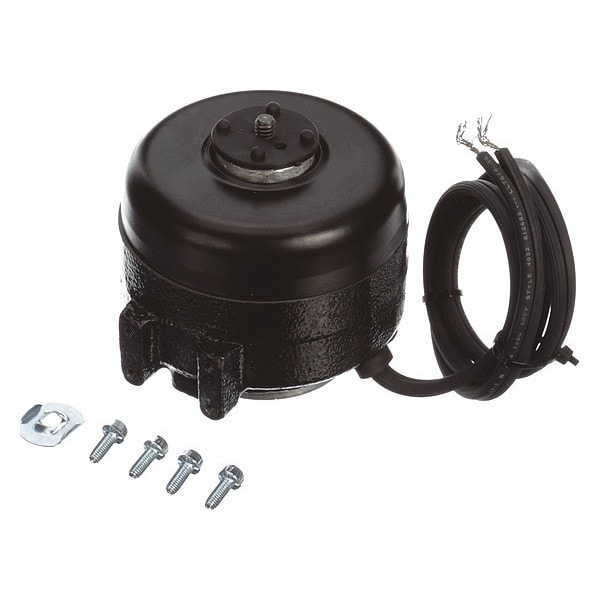

Unit Bearing Motor

  • Mfr # UB597

  • Zoro # G9796683

product price:  $48.89
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
9 W
HP
1/100
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UB597
Zoro #
G9796683
UPC #
786674070197
Country of Origin
China

Dimensions

Overall Length
3 3/8 in
Length Less Shaft
2 13/16 in
Body Dia.
3 7/16 in
Mounting Stud Length
3/8 in
Shaft Dia.
1/4 in
Bolt Circle Dia.
2 13/16 in
Shaft Length
7/16 in
Lead Length
28 in
Bolt Circle Diameter
2 13/16 in
Body Diameter
3.4 in
Shaft Diameter
1/4 in
Frame Size
Non-Standard

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
9 W
HP
1/100
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Bearings
Unit
Motor Frame Material
Cast Iron
Standards
UL and CSA
Motor Service Factor
1
Full Load Amps
0.53 A
Includes
Speed Nut and Screw
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Shaft Design
Threaded
Motor Enclosure Design
Totally Enclosed Air-Over
Frame Material
Cast Iron
Item
Unit Bearing Motor
Motor Mounting Position
All Angle
Motor Design
Shaded Pole
Ins. Class
B
Motor Mounting Type
Rear/Double Foot
No. of Speeds
1
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Usable @ 208V
Not Usable at 208V
Weight
3 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Features
Totally Enclosed Air Over
Product Type
Unit Bearing Motor
Number of Speeds
1
Wattage
9 W
Drive Type
Direct Drive
Full Load Current @ 60 Hz
0.53 A
Sub Application
Unit Bearing
Shaft Design
Threaded
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over
Bearing Type
Unit
Insulation Class
B
Duty
Continuous
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Mounting Position
All Angle

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.53 A Full Load Amps, Non-Standard Frame, Output Watts 9 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
