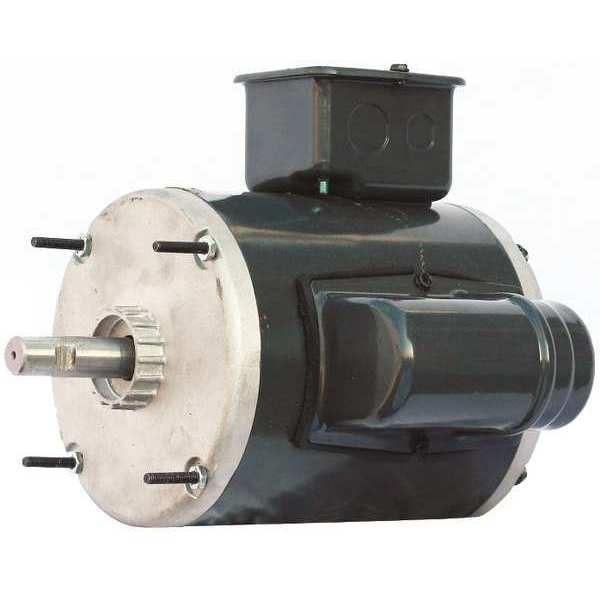

Direct Drive Motor, Permanent Split Capacitor, 1/4 HP, 115V AC, 1,075 Nameplate RPM

  • Mfr # GGS_46529

  • Zoro # G6424120

product price:  $147.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
Voltage
115V AC
Frame
Non-Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GGS_46529
Zoro #
G6424120
UPC #
190735957738
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Length Less Shaft
6 7/8 in
Bolt Circle Dia.
2 in
Shaft Dia.
17 mm
Body Dia.
5.6 in
Overall Length
8 15/16 in
Shaft Length
2 1/16 in
Frame Size
Non-Standard
Shaft Diameter
17 mm
Mounting Stud Thread Size
M5
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Length
186 mm

Details

Item
Definite Purpose HVAC Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
Voltage
115V AC
Frame
Non-Standard
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,075
Motor Application
OEM Replacement
Motor Mounting Type
Yoke
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CWSE
Voltage Compatibility
115V AC, 120V AC, 115/230V AC, 115/208-230V AC, 120/240V AC
Application
Fan/Blower
Ins. Class
B
Hz
60
Mounting Stud Pattern
3-5/8 x 3-5/8 in
Motor Bearings
Ball
Capacitor Required
Capacitor Included
Replacement For
Dayton 1HKL8C, Dayton 1HLB4C
Full Load Amps
2.75 A
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Number of Speeds
1
Weight
6.71 kg
Mounting Position
Horizontal
Product Type
Definite Purpose HVAC Motor
Nominal Efficiency
58 %
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Frame Material
Steel
Mounting Stud Location
4/Shaft End
Drive Type
Direct Drive
Sub Application
Fan/Blower
Bearing Type
Ball
Nameplate Service Factor @ 50 Hz
1
Compatible Brand
Dayton
Number of Shafts
1
Manufacturers Warranty
1 yr
Frequency
60 Hz
Duty
Continuous
Full Load Current @ 60 Hz
2.75 A
Insulation Class
B
Nameplate Voltage @ 50 Hz
115V AC
Ambient Temperature - Maximum
40 Degrees C
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Double Flat
Compatible Manufacturer Part Number
1HLA9C, 1HLB2C, 1HLB3C

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.75 A, Non-Standard Frame, Replacement For Dayton 1HKL8C, Dayton 1HLB4C, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE
